Industrial Control Transformers
Standard
Series: GP
  • Power Rating : 25VA to 2000VA
  • Primary Voltage : 120V - 600V, 50/60 Hz
  • Secondary Voltage : 24 - 240V
  • High Inrush current capability
  • Voltage regulation exceeds NEMA ST-1
  • IEC Touch proof terminals
  • Copper coils for excellent thermal characterstics
  • Insulation Class B (130°C), F(155°C), H(180°C), N(200°C)
  • Optional input/output fuse(s)
  • Fuse block kits per request & easy installation
  • Heavy gauge steel mounting plate
  • 10 year warranty

Agency Approval
  • UL/cUL 5085-2 Listed, CE marked, UL File E47299
  • Meets or Exceeds NEMA, ANSI, NMBTA, JIC & IEC standards
Results: 353
Standard Parts:
VA Rating
  • 25
  • 50
  • 75
  • 100
  • 150
  • 200
  • 250
  • 300
  • 350
  • 500
  • 750
  • 1000
  • 1500
  • 2000
Primary Voltage
  • 120/240V
  • 120/208/220-240/277/347/380-415/440-480/550-600V
  • 208/416V
  • 208, 230, 460V
  • 208, 230, 480V
  • 208, 277, 380V
  • 220/440, 230/460, 240/480V
  • 230, 460, 575V
  • 240/480V
  • 240, 347, 380V
  • 240, 480, 600V
  • 277V
  • 347, 380V
  • 380, 415V
  • 480V
  • 550, 575, 600V
  • 600V
Secondary Voltage
  • 12/24V
  • 24V
  • 24, 115V
  • 25, 120V
  • 85, 130V
  • 95, 115V
  • 100, 120V
  • 110/220V
  • 110, 115, 120V
  • 115V
  • 115/230V
  • 120V
  • 120/240V
  • 240V
Fuses - Primary
  • No Fuse, Fuse block mounting bracket only
Fuses - Secondary
  • No Fuse, No Fuse Clip
  • No Fuse, Only fuse clip for midget fuse

Cannot Find Part Number, Please Click Here:

Results: 353
Compare Part Number VA Rating Primary Voltage Secondary Voltage Fuses - Primary Fuses - Secondary UL File No. RoHs Reach Datasheet Quanitity Available Check Price
GP0350-Z00 350 208/416V 120/240V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0500-Z00 500 208/416V 120/240V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0750-Z00 750 208/416V 120/240V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP1000-Z00 1000 208/416V 120/240V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP1500-Z00 1500 208/416V 120/240V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP2000-Z00 2000 208/416V 120/240V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0025-EB00 25 120/208/220-240/277/347/380-415/440-480/550-600V 85, 130V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0050-EB00 50 120/208/220-240/277/347/380-415/440-480/550-600V 85, 130V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0075-EB00 75 120/208/220-240/277/347/380-415/440-480/550-600V 85, 130V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0100-EB00 100 120/208/220-240/277/347/380-415/440-480/550-600V 85, 130V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0150-EB00 150 120/208/220-240/277/347/380-415/440-480/550-600V 85, 130V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0200-EB00 200 120/208/220-240/277/347/380-415/440-480/550-600V 85, 130V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0250-EB00 250 120/208/220-240/277/347/380-415/440-480/550-600V 85, 130V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0300-EB00 300 120/208/220-240/277/347/380-415/440-480/550-600V 85, 130V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0350-EB00 350 120/208/220-240/277/347/380-415/440-480/550-600V 85, 130V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0500-EB00 500 120/208/220-240/277/347/380-415/440-480/550-600V 85, 130V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0750-EB00 750 120/208/220-240/277/347/380-415/440-480/550-600V 85, 130V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP1000-EB00 1000 120/208/220-240/277/347/380-415/440-480/550-600V 85, 130V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP1500-EB00 1500 120/208/220-240/277/347/380-415/440-480/550-600V 85, 130V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price

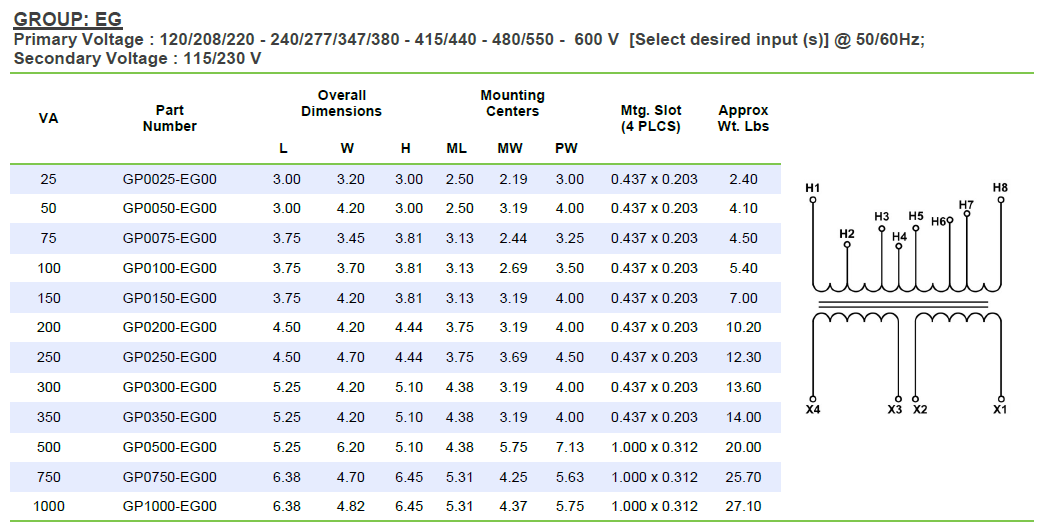

GP0025-EG00 25 120/208/220-240/277/347/380-415/440-480/550-600V 115/230V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0050-EG00 50 120/208/220-240/277/347/380-415/440-480/550-600V 115/230V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0075-EG00 75 120/208/220-240/277/347/380-415/440-480/550-600V 115/230V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0100-EG00 100 120/208/220-240/277/347/380-415/440-480/550-600V 115/230V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0150-EG00 150 120/208/220-240/277/347/380-415/440-480/550-600V 115/230V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0200-EG00 200 120/208/220-240/277/347/380-415/440-480/550-600V 115/230V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0250-EG00 250 120/208/220-240/277/347/380-415/440-480/550-600V 115/230V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0300-EG00 300 120/208/220-240/277/347/380-415/440-480/550-600V 115/230V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0350-EG00 350 120/208/220-240/277/347/380-415/440-480/550-600V 115/230V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0500-EG00 500 120/208/220-240/277/347/380-415/440-480/550-600V 115/230V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0750-EG00 750 120/208/220-240/277/347/380-415/440-480/550-600V 115/230V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP1000-EG00 1000 120/208/220-240/277/347/380-415/440-480/550-600V 115/230V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price

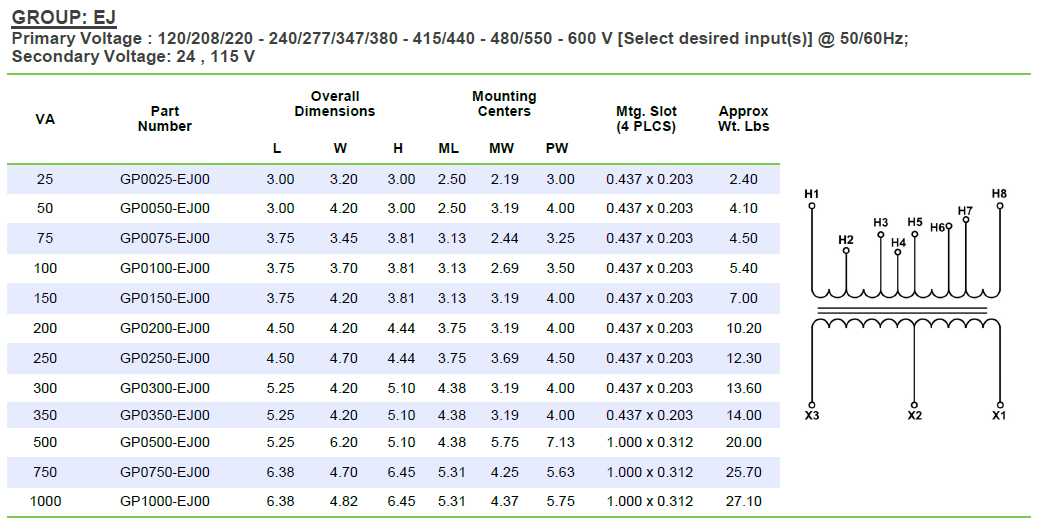

GP0025-EJ00 25 120/208/220-240/277/347/380-415/440-480/550-600V 24, 115V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0050-EJ00 50 120/208/220-240/277/347/380-415/440-480/550-600V 24, 115V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0075-EJ00 75 120/208/220-240/277/347/380-415/440-480/550-600V 24, 115V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0100-EJ00 100 120/208/220-240/277/347/380-415/440-480/550-600V 24, 115V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0150-EJ00 150 120/208/220-240/277/347/380-415/440-480/550-600V 24, 115V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0200-EJ00 200 120/208/220-240/277/347/380-415/440-480/550-600V 24, 115V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0250-EJ00 250 120/208/220-240/277/347/380-415/440-480/550-600V 24, 115V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0300-EJ00 300 120/208/220-240/277/347/380-415/440-480/550-600V 24, 115V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0350-EJ00 350 120/208/220-240/277/347/380-415/440-480/550-600V 24, 115V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0500-EJ00 500 120/208/220-240/277/347/380-415/440-480/550-600V 24, 115V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0750-EJ00 750 120/208/220-240/277/347/380-415/440-480/550-600V 24, 115V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP1000-EJ00 1000 120/208/220-240/277/347/380-415/440-480/550-600V 24, 115V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0025-GM00 25 347, 380V 120/240V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0050-GM00 50 347, 380V 120/240V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0075-GM00 75 347, 380V 120/240V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0100-GM00 100 347, 380V 120/240V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0150-GM00 150 347, 380V 120/240V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0200-GM00 200 347, 380V 120/240V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
GP0250-GM00 250 347, 380V 120/240V No Fuse, Fuse block mounting bracket only No Fuse, No Fuse Clip E47299 Yes Yes View 0 Check Price
251 - 300 of 353
