transformers

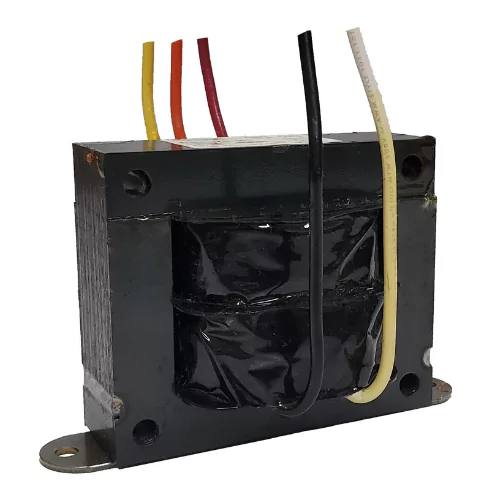

Generic Picture - Mounting Style

transformers
Chassis Mount - Lead Wires
Lead Wires - Econoline
Series: PSL/PDL
  • Power Rating: 1.2VA - 100VA
  • Primary Voltage: 115V or 115/230V
  • Frequency: 50/60Hz
  • Secondary Voltage: 10 - 120V
  • Insulation Class B (130°C)
  • High Isolation - 2500Vrms
  • Low Capacitive Coupling, no Electrostatic Shield Needed
  • Color Coded Hook-up Wires

Agency Approval
  • UL/cUL 5085-2 Recognized (File E47299)
  • UL 1446 Insulation System File E95662
Results: 300
Standard Parts:
VA Rating
  • 1.2
  • 2.4
  • 5
  • 6
  • 10
  • 12
  • 15
  • 20
  • 30
  • 40
  • 50
  • 56
  • 75
  • 80
  • 100
Primary Voltage
  • 115V
  • 115/230V
Secondary Voltage
  • 10VCT @ 0.12A
  • 10VCT @ 0.240A
  • 10VCT @ 0.500A
  • 10VCT @ 0.600A
  • 10VCT @ 1.00A
  • 10VCT @ 1.20A
  • 10VCT @ 1.50A
  • 10VCT @ 2.00A
  • 10VCT @ 3.00A
  • 10VCT @ 4.00A
  • 10VCT @ 5.00A
  • 10VCT @ 5.60A
  • 10VCT @ 7.50A
  • 10VCT @ 8.00A
  • 10VCT @ 10.00A
  • 12.6VCT @ 0.095A
  • 12.6VCT @ 0.190A
  • 12.6VCT @ 0.397A
  • 12.6VCT @ 0.476A
  • 12.6VCT @ 0.79A
  • 12.6VCT @ 0.95A
  • 12.6VCT @ 1.19A
  • 12.6VCT @ 1.58A
  • 12VCT @ 2.50A
  • 12VCT @ 3.33A
  • 12VCT @ 4.17A
  • 12VCT @ 4.66A
  • 12VCT @ 6.25A
  • 12VCT @ 6.66A
  • 12VCT @ 8.33A
  • 16VCT @ 0.075A
  • 16VCT @ 0.150A
  • 16VCT @ 0.312A
  • 16VCT @ 0.375A
  • 16VCT @ 0.625A
  • 16VCT @ 0.75A
  • 16VCT @ 0.94A
  • 16VCT @ 1.25A
  • 16VCT @ 1.875A
  • 16VCT @ 2.50A
  • 16VCT @ 3.125A
  • 16VCT @ 3.15A
  • 16VCT @ 4.69A
  • 16VCT @ 5.00A
  • 16VCT @ 6.25A
  • 20VCT @ 0.060A
  • 20VCT @ 0.120A
  • 20VCT @ 0.250A
  • 20VCT @ 0.300A
  • 20VCT @ 0.500A
  • 20VCT @ 0.60A
  • 20VCT @ 0.750A
  • 20VCT @ 1.00A
  • 20VCT @ 1.50A
  • 20VCT @ 2.00A
  • 20VCT @ 2.50A
  • 20VCT @ 2.80A
  • 20VCT @ 3.75A
  • 20VCT @ 4.00A
  • 20VCT @ 5.00A
  • 24VCT @ 0.050A
  • 24VCT @ 0.100A
  • 24VCT @ 0.208A
  • 24VCT @ 0.250A
  • 24VCT @ 0.417A
  • 24VCT @ 0.50A
  • 24VCT @ 0.625A
  • 24VCT @ 0.834A
  • 24VCT @ 1.25A
  • 24VCT @ 1.67A
  • 24VCT @ 2.08A
  • 24VCT @ 2.33A
  • 24VCT @ 3.125A
  • 24VCT @ 3.33A
  • 24VCT @ 4.17A
  • 28VCT @ 0.043A
  • 28VCT @ 0.085A
  • 28VCT @ 0.178A
  • 28VCT @ 0.214A
  • 28VCT @ 0.357A
  • 28VCT @ 0.428
  • 28VCT @ 0.536A
  • 28VCT @ 0.714A
  • 28VCT @ 1.071A
  • 28VCT @ 1.43A
  • 28VCT @ 1.78A
  • 28VCT @ 2.00A
  • 28VCT @ 2.68A
  • 28VCT @ 2.86A
  • 28VCT @ 3.57A
  • 36VCT @ 0.014A
  • 36VCT @ 0.066A
  • 36VCT @ 0.138A
  • 36VCT @ 0.167A
  • 36VCT @ 0.278A
  • 36VCT @ 0.33A
  • 36VCT @ 0.417A
  • 36VCT @ 0.555A
  • 36VCT @ 0.833A
  • 36VCT @ 1.11A
  • 36VCT @ 1.39A
  • 36VCT @ 1.56A
  • 36VCT @ 2.08A
  • 36VCT @ 2.22A
  • 36VCT @ 2.78A
  • 48VCT @ 0.025A
  • 48VCT @ 0.050A
  • 48VCT @ 0.104A
  • 48VCT @ 0.125A
  • 48VCT @ 0.208A
  • 48VCT @ 0.25A
  • 48VCT @ 0.312A
  • 48VCT @ 0.417A
  • 48VCT @ 0.625A
  • 48VCT @ 0.834A
  • 48VCT @ 1.042A
  • 48VCT @ 1.17A
  • 48VCT @ 1.56A
  • 48VCT @ 1.67A
  • 48VCT @ 2.08A
  • 56VCT @ 0.021A
  • 56VCT @ 0.043A
  • 56VCT @ 0.089A
  • 56VCT @ 0.107A
  • 56VCT @ 0.180A
  • 56VCT @ 0.214A
  • 56VCT @ 0.268A
  • 56VCT @ 0.357A
  • 56VCT @ 0.536A
  • 56VCT @ 0.714A
  • 56VCT @ 0.893A
  • 56VCT @ 1.00A
  • 56VCT @ 1.34A
  • 56VCT @ 1.43A
  • 56VCT @ 1.79A
  • 120VCT @ 0.010A
  • 120VCT @ 0.020A
  • 120VCT @ 0.042A
  • 120VCT @ 0.050A
  • 120VCT @ 0.083A
  • 120VCT @ 0.10A
  • 120VCT @ 0.125A
  • 120VCT @ 0.167A
  • 120VCT @ 0.250A
  • 120VCT @ 0.334A
  • 120VCT @ 0.417A
  • 120VCT @ 0.47A
  • 120VCT @ 0.67A
  • 120VCT @ 0.833A

Cannot Find Part Number, Please Click Here:

Results: 300
Compare Part Number VA Rating Primary Voltage Secondary Voltage UL File No. RoHs Reach Datasheet Quanitity Available Check Price
PSL-012-10 1.2 115V 10VCT @ 0.240A E47299 Yes Yes View 0 Check Price
PSL-012-126 1.2 115V 12.6VCT @ 0.095A E47299 Yes Yes View 0 Check Price
PSL-012-16 1.2 115V 16VCT @ 0.075A E47299 Yes Yes View 0 Check Price
PSL-012-20 1.2 115V 20VCT @ 0.060A E47299 Yes Yes View 0 Check Price
PSL-012-24 1.2 115V 24VCT @ 0.050A E47299 Yes Yes View 0 Check Price
PSL-012-28 1.2 115V 24VCT @ 4.17A E47299 Yes Yes View 0 Check Price
PSL-012-36 1.2 115V 28VCT @ 3.57A E47299 Yes Yes View 0 Check Price
PSL-012-48 1.2 115V 36VCT @ 2.78A E47299 Yes Yes View 0 Check Price
PSL-012-56 1.2 115V 48VCT @ 2.08A E47299 Yes Yes View 0 Check Price
PSL-012-120 1.2 115V 56VCT @ 1.79A E47299 Yes Yes View 0 Check Price
PSL-24-10 2.4 115V 10VCT @ 0.240A E47299 Yes Yes View 0 Check Price
PSL-24-126 2.4 115V 12.6VCT @ 0.190A E47299 Yes Yes View 0 Check Price
PSL-24-16 2.4 115V 16VCT @ 0.150A E47299 Yes Yes View 0 Check Price
PSL-24-20 2.4 115V 20VCT @ 0.120A E47299 Yes Yes View 0 Check Price
PSL-24-24 2.4 115V 24VCT @ 0.100A E47299 Yes Yes View 0 Check Price
PSL-24-28 2.4 115V 28VCT @ 0.043A E47299 Yes Yes View 0 Check Price
PSL-24-36 2.4 115V 36VCT @ 0.014A E47299 Yes Yes View 0 Check Price
PSL-24-48 2.4 115V 48VCT @ 0.025A E47299 Yes Yes View 0 Check Price
PSL-24-56 2.4 115V 56VCT @ 0.021A E47299 Yes Yes View 0 Check Price
PSL-24-120 2.4 115V 120VCT @ 0.010A E47299 Yes Yes View 0 Check Price
PSL-05-10 5 115V 10VCT @ 0.500A E47299 Yes Yes View 0 Check Price
PSL-05-126 5 115V 12.6VCT @ 0.397A E47299 Yes Yes View 0 Check Price
PSL-05-16 5 115V 16VCT @ 0.312A E47299 Yes Yes View 0 Check Price
PSL-05-20 5 115V 20VCT @ 0.250A E47299 Yes Yes View 0 Check Price
PSL-05-24 5 115V 24VCT @ 0.208A E47299 Yes Yes View 0 Check Price
PSL-05-28 5 115V 28VCT @ 0.085A E47299 Yes Yes View 0 Check Price
PSL-05-36 5 115V 36VCT @ 0.066A E47299 Yes Yes View 0 Check Price
PSL-05-48 5 115V 48VCT @ 0.050A E47299 Yes Yes View 0 Check Price
PSL-05-56 5 115V 56VCT @ 0.043A E47299 Yes Yes View 0 Check Price
PSL-05-120 5 115V 120VCT @ 0.020A E47299 Yes Yes View 0 Check Price
PSL-06-10 6 115V 10VCT @ 0.600A E47299 Yes Yes View 0 Check Price
PSL-06-126 6 115V 12.6VCT @ 0.476A E47299 Yes Yes View 0 Check Price
PSL-06-16 6 115V 16VCT @ 0.375A E47299 Yes Yes View 0 Check Price
PSL-06-20 6 115V 20VCT @ 0.300A E47299 Yes Yes View 0 Check Price
PSL-06-24 6 115V 24VCT @ 0.250A E47299 Yes Yes View 0 Check Price
PSL-06-28 6 115V 28VCT @ 0.178A E47299 Yes Yes View 0 Check Price
PSL-06-36 6 115V 36VCT @ 0.138A E47299 Yes Yes View 0 Check Price
PSL-06-48 6 115V 48VCT @ 0.104A E47299 Yes Yes View 0 Check Price
PSL-06-56 6 115V 56VCT @ 0.089A E47299 Yes Yes View 0 Check Price
PSL-06-120 6 115V 120VCT @ 0.042A E47299 Yes Yes View 0 Check Price
PSL-10-10 10 115V 10VCT @ 1.00A E47299 Yes Yes View 0 Check Price
PSL-10-126 10 115V 12.6VCT @ 0.79A E47299 Yes Yes View 0 Check Price
PSL-10-16 10 115V 16VCT @ 0.625A E47299 Yes Yes View 0 Check Price
PSL-10-20 10 115V 20VCT @ 0.500A E47299 Yes Yes View 0 Check Price
PSL-10-24 10 115V 24VCT @ 0.417A E47299 Yes Yes View 0 Check Price
PSL-10-28 10 115V 28VCT @ 0.214A E47299 Yes Yes View 0 Check Price
PSL-10-36 10 115V 36VCT @ 0.167A E47299 Yes Yes View 0 Check Price
PSL-10-48 10 115V 48VCT @ 0.125A E47299 Yes Yes View 0 Check Price
PSL-10-56 10 115V 56VCT @ 0.107A E47299 Yes Yes View 0 Check Price
PSL-10-120 10 115V 120VCT @ 0.050A E47299 Yes Yes View 0 Check Price
1 - 50 of 300
