Series: Navigator Class (U), High Performance
Part Number: U048-2-012
Description: Printed Circuit Mount - Low Profile, 48VA, Primary: 115/230V, Secondary Series: 12.6VCT @ 3.8A, Secondary Parallel: 6.3V @ 7.60A
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications
| Type | Description |
|---|---|
| VA Rating | 48VA |
| Status | Active |
| Primary Voltage | 115/230V |
| Secondary Series Voltage | 12.6VCT @ 3.8A |
| Secondary Parallel Voltage | 6.3V @ 7.60A |
| Size/Dimension(L x W x H) | 3.13 x 1.88 x 1.38 Inch |
| Weight (lbs) | 1.31 |
| UL Recognized | UL File E47299 |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHs | RoHs3 COMPLIANT |
| REACH Status | REACH Uneffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.4065 |

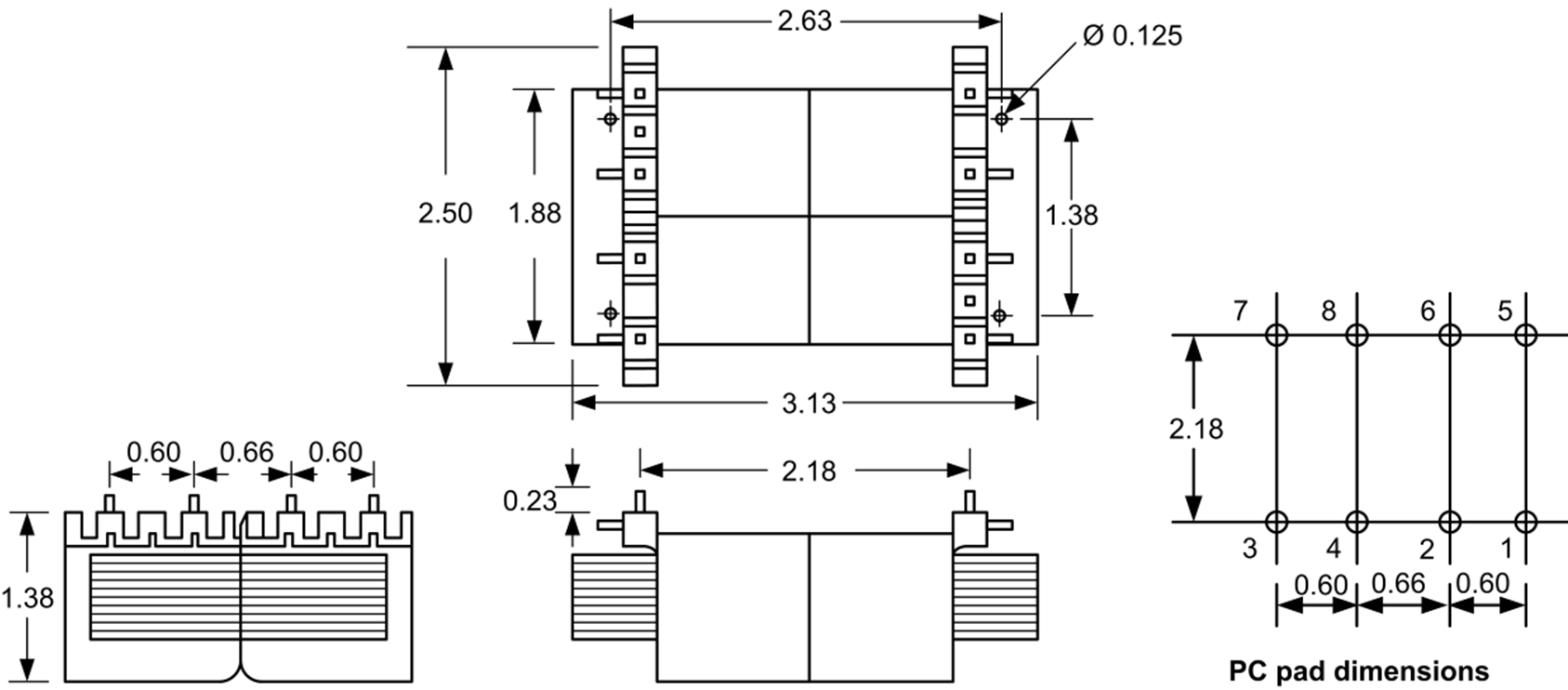

Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | A | B | C | D | E | MC | WC | Pins | Weight (lbs) |
| 48VA | U048-2-012 | 3.13 | 1.88 | 1.38 | 0.125 | 2.50 | 2.18 | 0.60 | 0.66 | 1.38 | 2.63 | 0.041 Square | 1.31 |
Schematics
