Series: Navigator Class (U), High Performance
Part Number: U006-2-024
Description: Printed Circuit Mount - Low Profile, 6VA, Primary: 115/230V, Secondary Series: 24VCT @ 250mA, Secondary Parallel: 12V @ 500mA
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications
| Type | Description |
|---|---|
| VA Rating | 6VA |
| Status | Active |
| Primary Voltage | 115/230V |
| Secondary Series Voltage | 24VCT @ 250mA |
| Secondary Parallel Voltage | 12V @ 500mA |
| Size/Dimension(L x W x H) | 1.88 x 1.13 x 0.81 Inch |
| Weight (lbs) | 0.44 |
| UL Recognized | UL File E47299 |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHs | RoHs3 COMPLIANT |
| REACH Status | REACH Uneffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.4035 |

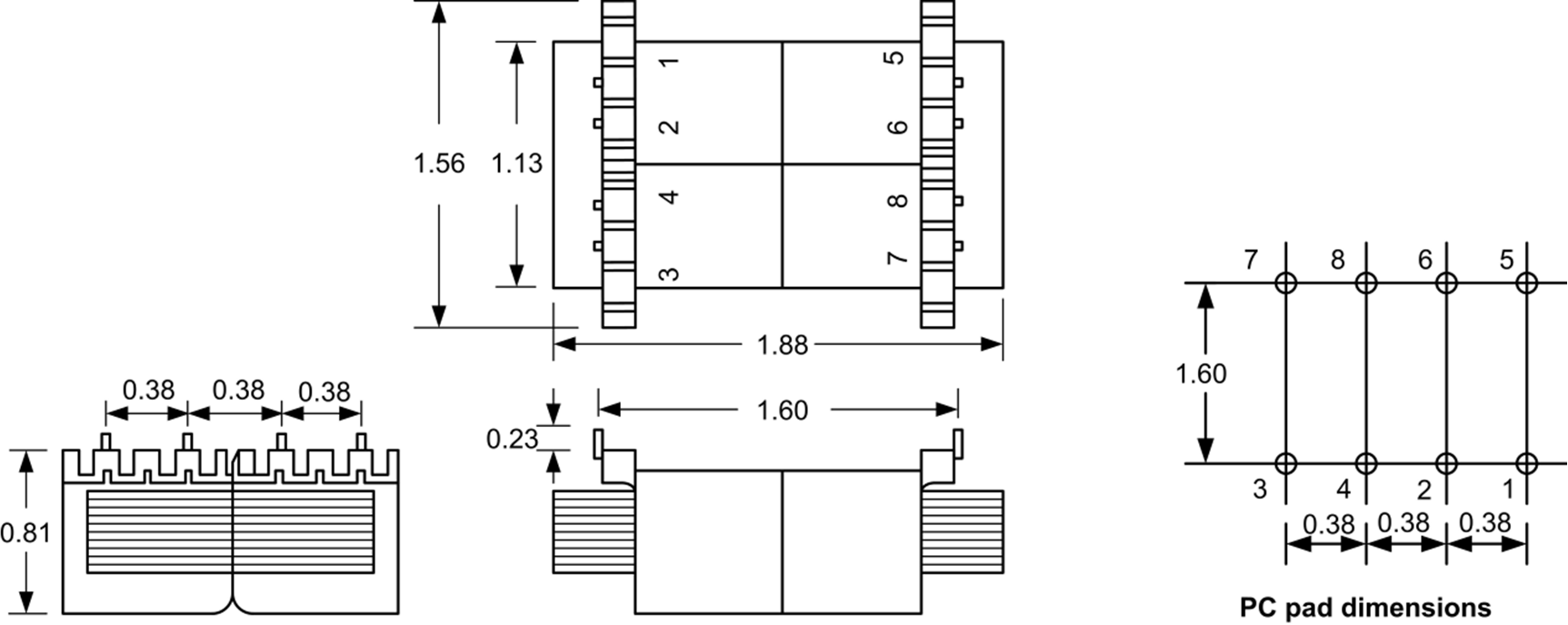

Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | A | B | C | D | E | MC | WC | Pins | Weight (lbs) |
| 6VA | U006-2-024 | 1.88 | 1.13 | 0.81 | - | 1.56 | 1.60 | 0.38 | 0.38 | - | - | 0.041 x 0.02 | 0.44 |
Schematics
