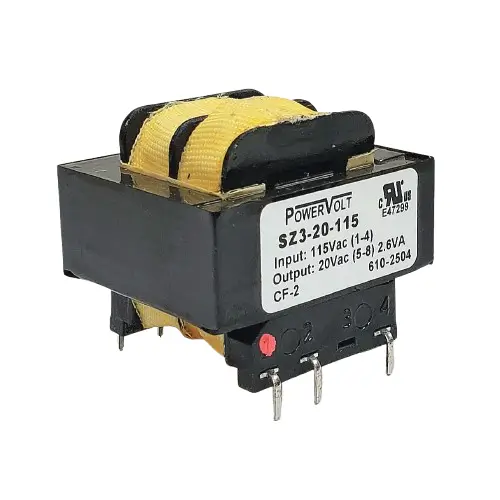

Series : SZ & DSZ, Econoline
Part Number: SZ3-20-115
Description: Printed Circuit Mount - Standard Profile, 2.4VA, Primary : 115V, Secondary Series : 20V @ 0.12A
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications:
| Type- | Description, |
|---|---|
| VA Rating | 2.4VA, |
| Status | Active, |
| Primary Voltage | 115V, |
| Secondary Series | 20V @ 0.12A, |
| Secondary Parallel | -, |
| Size/Dimension(L x W x H) | 1.375 x 1.125 x 1.250 Inch, |
| Weight (lbs) | 0.25, |
| UL Recognized | UL File E47299, |
Environmental & Export Classifications:
| Attribute- | Description, |
|---|---|
| RoHs | RoHs3 COMPLIANT, |
| REACH Status | REACH Uneffected, |
| ECCN | EAR99, |
| HTSUS | 8504.31.4035, |

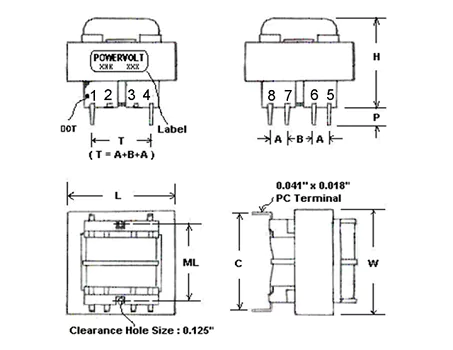

Mechanical Dimensions(inches)
| Dimension's in Inches | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | ML | A | B | C | P | Weight (lbs) |
| 2.4VA | SZ3-20-115 | 1.375 | 1.125 | 1.250 | - | 0.25 | 0.25 | 1.20 | 0.13 | 0.25 |

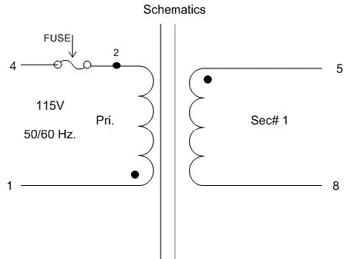

Schematics
