Series : SZ & DSZ, Econoline
Part Number: SZ3-12
Description: Printed Circuit Mount - Standard Profile, 2.4VA, Primary : 115V,Secondary Series : 12.6VCT @ 0.2A, Secondary Parallel : 6.3V @ 0.4A
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications
| Type | Description |
|---|---|
| VA Rating | 2.4VA |
| Status | Active |
| Primary Voltage | 115V |
| Secondary Series | 12.6VCT @ 0.20A |
| Secondary Parallel | 6.3V @ 0.40A |
| Size/Dimension(L x W x H) | 1.375 x 1.125 x 1.188 Inch |
| Weight (lbs) | 0.25 |
| UL Recognized | UL File E47299 |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHs | RoHs3 COMPLIANT |
| REACH Status | REACH Uneffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.4035 |

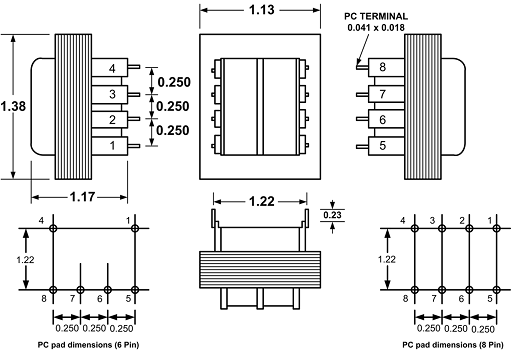

Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | ML | A | B | C | Weight (lbs) |
| 2.4VA | SZ3-12 | 1.375 | 1.125 | 0.938 | - | 0.250 | 0.250 | 1.200 | 0.25 |
Schematics
