Series: STP
Part Number: STP-35AMP2.5
Description: DC Power Supply - Stepper Power, 88VA, Approximate No Load: 42V, Approximate Under Load: 35V @ 2.5A
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications
| Type | Description |
|---|---|
| VA Rating | 88VA |
| Status | Active |
| Approximate No Load | 42V |
| Approximate Under Load | 35V @ 2.5A |
| Size/Dimension(L x W x H) | 7.000 x 3.640 x 4.000 Inch |
| Weight (lbs) | 6.0 |
| UL Recognized | File # E181899 |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHs | RoHs3 COMPLIANT |
| REACH Status | REACH Uneffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.4065 |

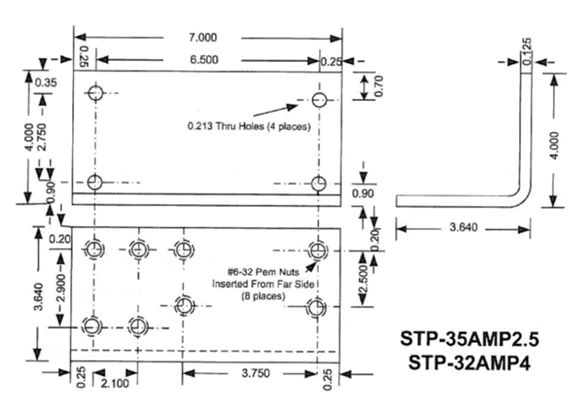

Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | Logic Power | Weight (lbs) | |||
| 88VA | STP-35AMP2.5 | 7.000 | 3.640 | 4.000 | 5V ± 5% @ 500mA | 6.0 | |||
Schematics
