Series : SPWC
Part Number: SPWC-4503
Description: International Series Chassis Mount - Quick Connect, 6.0VA, Primary : 115V, Secondary Series: 20VCT @ 0.300A, Secondary Parallel: 10V @ 0.600A
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications
| Type | Description |
|---|---|
| VA Rating | 6.0VA |
| Status | Active |
| Primary Voltage | 115/230V |
| Secondary Series | 20VCT @ 0.300A |
| Secondary Parallel | 10V @ 0.600A |
| Size/Dimension(L x W x H) | 1.32 x 1.84 x 1.67 Inch |
| Weight (lbs) | 0.47 |
| UL Recognized | UL File E47299 |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHs | RoHs3 COMPLIANT |
| REACH Status | REACH Uneffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.4035 |

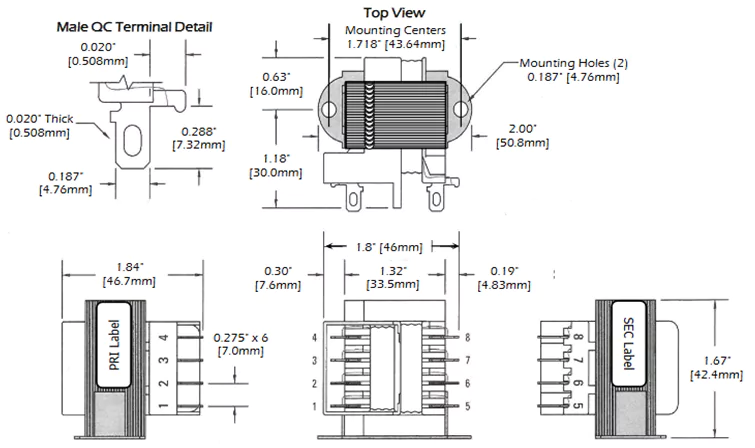

Mechanical Dimensions(inches)
| Dimension's in Inches | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | MC | WC | A | B | C | D | E | Weight (lbs) |
| 6.0VA | SPWC-4503 | 1.32 | 1.84 | 1.67 | 1.718 | - | 0.275 | 0.288 | 0.187 | - | 2.00 | 0.47 |

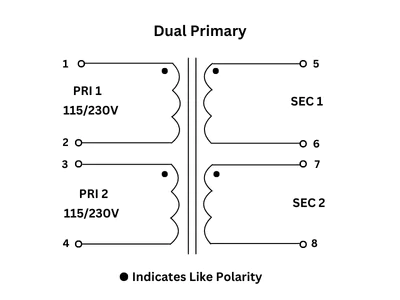

Schematics
