Series : SPWC
Part Number: SPWC-1606
Description: International Series Chassis Mount - Quick Connect, 80VA, Primary : 115/230V, Secondary Series: 36VCT @ 2.2A, Secondary Parallel: 18V @ 4.4A
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
View 3D ModelSpecifications:
| Type- | Description, |
|---|---|
| VA Rating | 80VA, |
| Status | Active, |
| Primary Voltage | 115/230V, |
| Secondary Series | 36VCT @ 2.2A, |
| Secondary Parallel | 18V @ 4.4A, |
| Size/Dimension(L x W x H) | 2.500 x 2.610 x 3.060 Inch, |
| Weight (lbs) | 2.80, |
| UL Recognized | UL File E47299, |
Environmental & Export Classifications:
| Attribute- | Description, |
|---|---|
| RoHs | RoHs3 COMPLIANT, |
| REACH Status | REACH Uneffected, |
| ECCN | EAR99, |
| HTSUS | 8504.31.4065, |

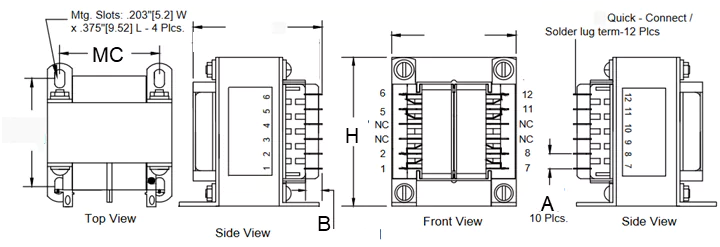

Mechanical Dimensions(inches)
| Dimension's in Inches | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | MC | WC | A | B | C | D | E | Weight (lbs) |
| 80VA | SPWC-1606 | 2.500 | 2.610 | 3.060 | 2.000 | 2.180 | 0.300 | 0.330 | 0.187 | - | - | 2.80 |

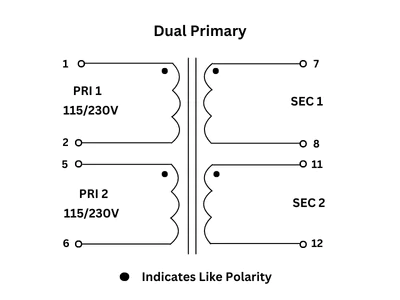

Schematics
