Series: SPW, Econoline
Part Number: SPW-3102
Description: International Series Printed Circuit Mount - Low Profile, 6.0VA, Primary: 115/230V, Secondary Series: 16VCT @ 350mA, Secondary Parallel: 8V @ 700mA
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications
| Type | Description |
|---|---|
| VA Rating | 6.0VA |
| Status | Active |
| Primary Voltage | 115/230V |
| Secondary Series | 16VCT @ 350mA |
| Secondary Parallel | 8V @ 700mA |
| Size/Dimension(L x W x H) | 2.030 x 1.510 x 0.895 Inch |
| Weight (lbs) | 0.38 |
| UL Recognized | UL File E47299 |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHs | RoHs3 COMPLIANT |
| REACH Status | REACH Uneffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.4035 |

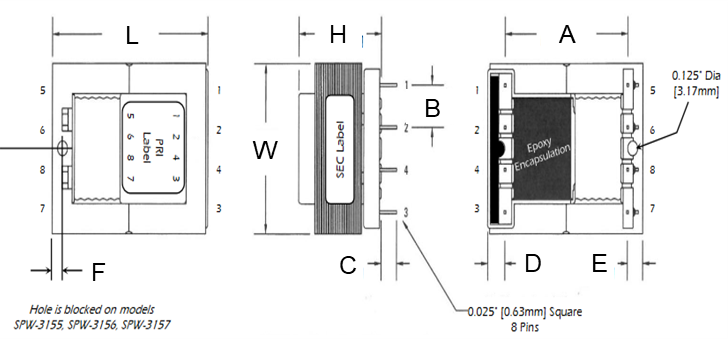

Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | A | B | C | D | E | F | Weight (lbs) |
| 6.0VA | SPW-3102 | 2.030 | 1.510 | 0.895 | 1.600 | 0.375 | 0.200 | 0.230 | 0.200 | 0.125 | 0.38 |
Schematics
