Series: P24X, 12Pins
Part Number: P24X-30-24
Description: Isolation Transformers - Printed Circuit Mount, 30VA, Primary: 24V, Secondary Series: 24VCT @ 1.250A, Secondary Parallel: 12V @ 2.500A
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
View 3D ModelSpecifications:
| Type- | Description, |
|---|---|
| VA Rating | 30VA, |
| Status | Active, |
| Primary Voltage | 24V, |
| Secondary Voltage | 24VCT @ 1.250A, |
| Size/Dimension(L x W x H) | 12V @ 2.500A, |
| Weight (lbs) | 2.25 x 1.87 x 1.79 Inch, |
| UL Recognized | 1.15, |
Environmental & Export Classifications:
| Attribute- | Description, |
|---|---|
| RoHs | RoHs3 COMPLIANT, |
| REACH Status | REACH Uneffected, |
| ECCN | EAR99, |
| HTSUS | 8504.31.4035, |

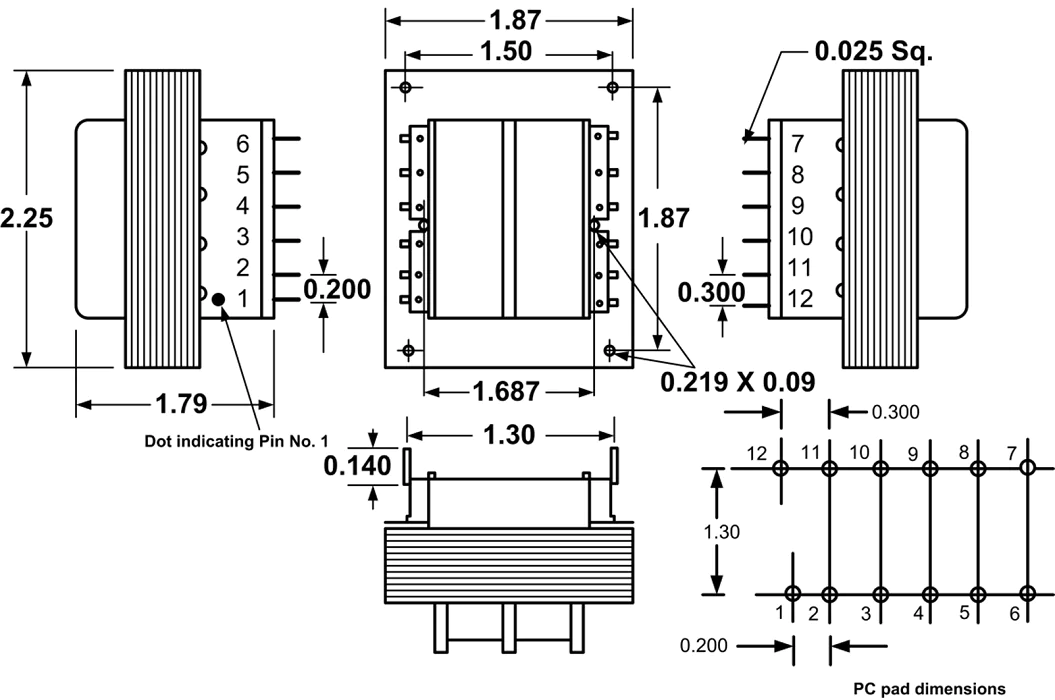

Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | A | B | C | D | K (Slots) | M | N | P | Weight (lbs) |
| 30VA | P24X-30-24 | 2.25 | 1.87 | 1.79 | 0.20 | 0.30 | 1.30 | 0.140 | 0.219 x 0.09 | 1.69 | 1.50 | 1.88 | 1.150 |
