Series: P24X, 12Pins
Part Number: P24X-24-24
Description: Isolation Transformers - Printed Circuit Mount, 2.4VA, Primary: 24V, Secondary Series: 24VCT @ 100mA, Secondary Parallel: 12V @ 0.200A
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications
| Type | Description |
|---|---|
| VA Rating | 2.4VA |
| Status | Active |
| Primary Voltage | 24V |
| Secondary Voltage | 24VCT @ 100mA |
| Size/Dimension(L x W x H) | 12V @ 0.200A |
| Weight (lbs) | 1.38 x 1.12 x 1.13 Inch |
| UL Recognized | 0.23 |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHs | RoHs3 COMPLIANT |
| REACH Status | REACH Uneffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.4035 |

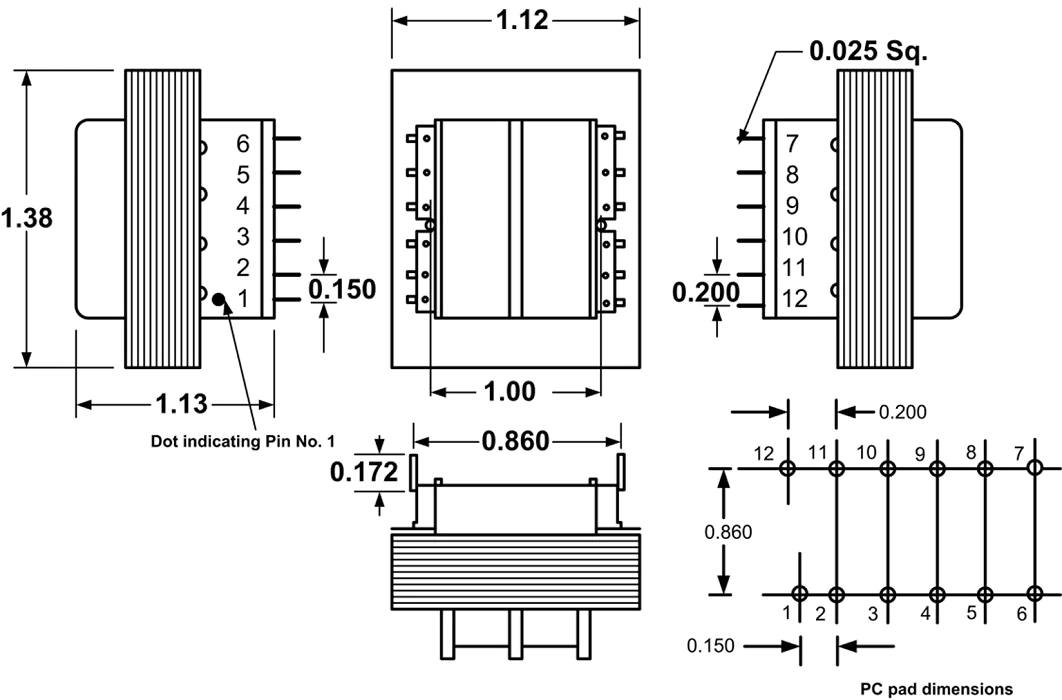

Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | A | B | C | D | K (Slots) | M | N | P | Weight (lbs) |
| 2.4VA | P24X-24-24 | 1.38 | 1.12 | 1.13 | 0.15 | 0.20 | 0.86 | 0.172 | - | 1.00 | - | - | 0.230 |

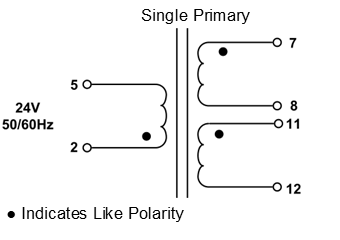

Schematics
