Series: P24T, Quick Connect
Part Number: P24T-56-24
Description: Isolation Transformers - Chassis Mount, 56VA, Primary: 24V, Secondary: 24VCT @ 2.33A
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications:
| Type- | Description, |
|---|---|
| VA Rating | 56VA, |
| Status | Active, |
| Primary Voltage | 24V, |
| Secondary Voltage | 24VCT @ 2.33A, |
| Size/Dimension(L x W x H) | 3.688 x 1.87 x 2.25 Inch, |
| Weight (lbs) | 1.70, |
| UL Recognized | UL File E47299, |
Environmental & Export Classifications:
| Attribute- | Description, |
|---|---|
| RoHs | RoHs3 COMPLIANT, |
| REACH Status | REACH Uneffected, |
| ECCN | EAR99, |
| HTSUS | 8504.31.4065, |

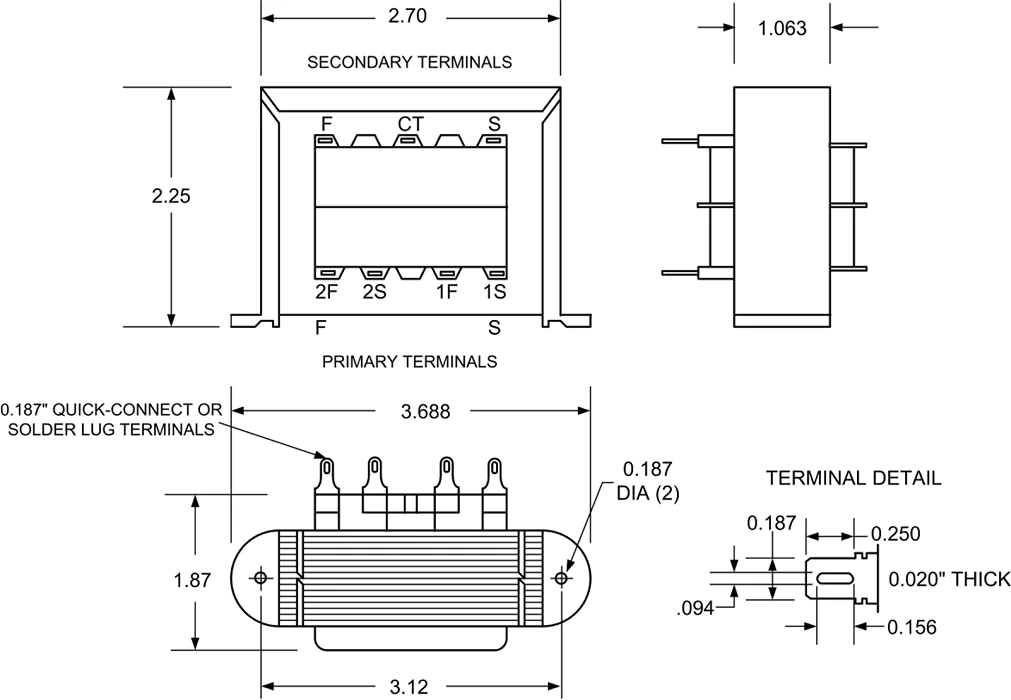

Mechanical Dimensions(inches)
| Dimension's in Inches | ||||||||
|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | A | B | ML | Weight (lbs) |
| 56VA | P24T-56-24 | 3.688 | 1.87 | 2.25 | 2.70 | 1.063 | 3.12 | 1.70 |
Schematics
