Series: P24L, Lead Wires
Part Number: P24L-50-24
Description: Isolation Transformers - Chassis Mount, 50VA, Primary: 24V, Secondary: 24VCT @ 2.083A
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications
| Type | Description |
|---|---|
| VA Rating | 50VA |
| Status | Active |
| Primary Voltage | 24V |
| Secondary Voltage | 24VCT @ 2.083A |
| Size/Dimension(L x W x H) | 3.688 x 2.13 x 2.25 Inch |
| Weight (lbs) | 1.70 |
| UL Recognized | UL File E47299 |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHs | RoHs3 COMPLIANT |
| REACH Status | REACH Uneffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.4065 |

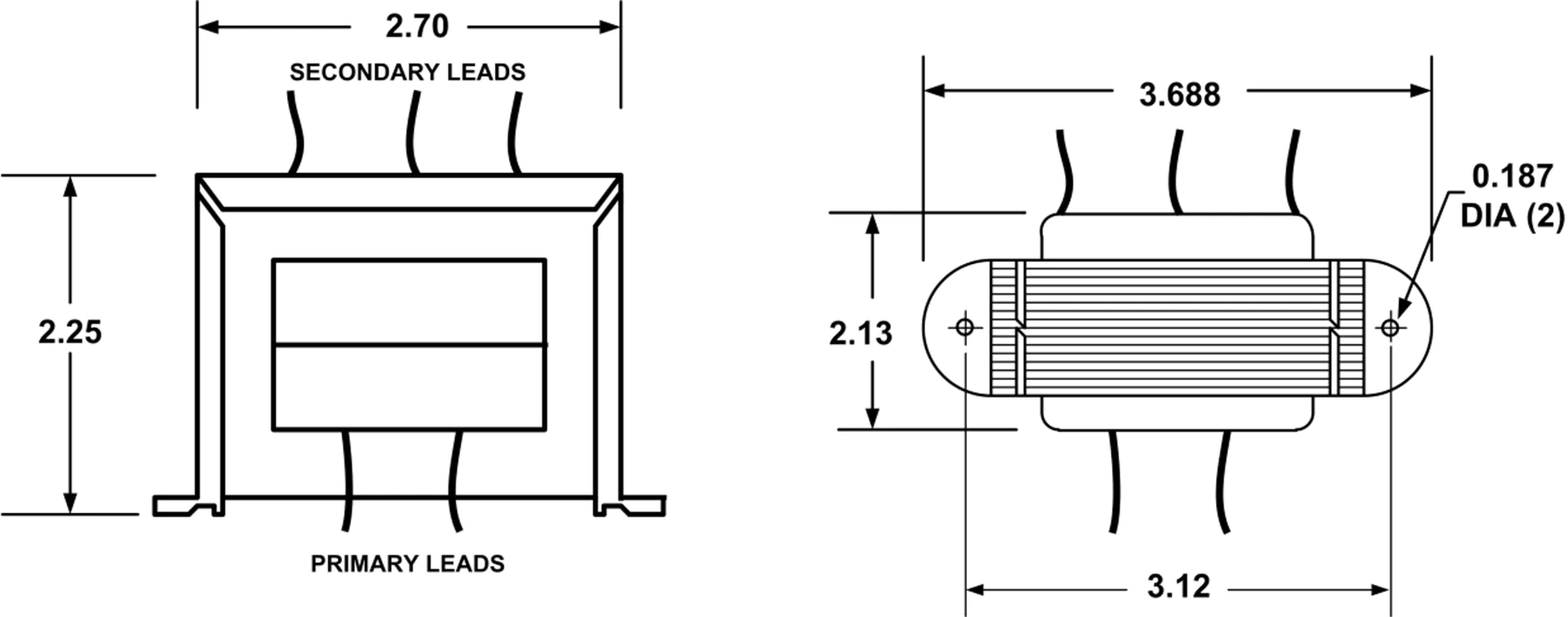

Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | A | ML | Weight (lbs) | ||
| 50VA | P24L-50-24 | 3.688 | 2.13 | 2.25 | 2.70 | 3.12 | 1.70 | ||
Schematics
