Series: P24H, 6Pins
Part Number: P24H-11-24
Description: Isolation Transformers - Printed Circuit Mount, 1.1VA, Primary: 24V, Secondary Series: 24VCT @ 46mA, Secondary Parallel: 12V @ 0.092A
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
View 3D ModelSpecifications:
| Type- | Description, |
|---|---|
| VA Rating | 1.1VA, |
| Status | Active, |
| Primary Voltage | 24V, |
| Secondary Voltage | 24VCT @ 46mA, |
| Size/Dimension(L x W x H) | 12V @ 0.092A, |
| Weight (lbs) | 1.38 x 1.13 x 0.93 Inch, |
| UL Recognized | 0.17, |
Environmental & Export Classifications:
| Attribute- | Description, |
|---|---|
| RoHs | RoHs3 COMPLIANT, |
| REACH Status | REACH Uneffected, |
| ECCN | EAR99, |
| HTSUS | 8504.31.4035, |

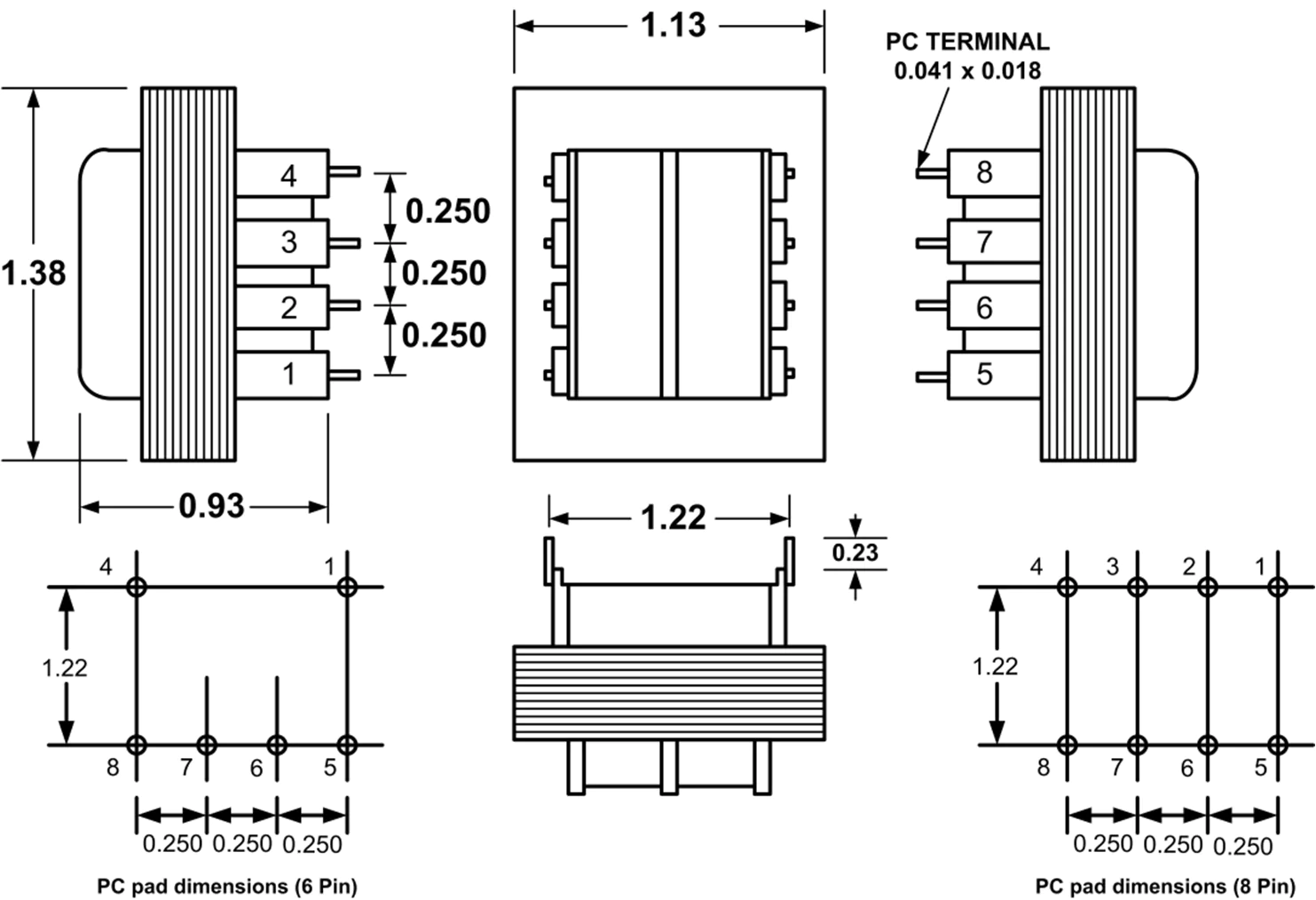

Mechanical Dimensions(inches)
| Dimension's in Inches | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | ML | A | B | C | D (dia.) | Weight (lbs) |
| 1.1VA | P24H-11-24 | 1.38 | 1.13 | 0.93 | - | 0.250 | 0.250 | 1.22 | - | 0.17 |
Schematics
