Series: Captain Class (P), High Performance
Part Number: P036-1-024
Description: Printed Circuit Mount - Standard Profile, 36VA, Primary: 115V, Secondary Series: 24VCT @ 1.5A, Secondary Parallel: 12V @ 3.0A
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
View 3D ModelSpecifications:
| Type- | Description, |
|---|---|
| VA Rating | 36VA, |
| Status | Active, |
| Primary Voltage | 115V, |
| Secondary Series | 24VCT @ 1.50A, |
| Secondary Parallel | 12V @ 3.00A, |
| Size/Dimension(L x W x H) | 2.63 x 2.19 x 1.56 Inch, |
| Weight (lbs) | 1.10, |
| UL Recognized | UL File E47299, |
Environmental & Export Classifications:
| Attribute- | Description, |
|---|---|
| RoHs | RoHs3 COMPLIANT, |
| REACH Status | REACH Uneffected, |
| ECCN | EAR99, |
| HTSUS | 8504.31.4035, |

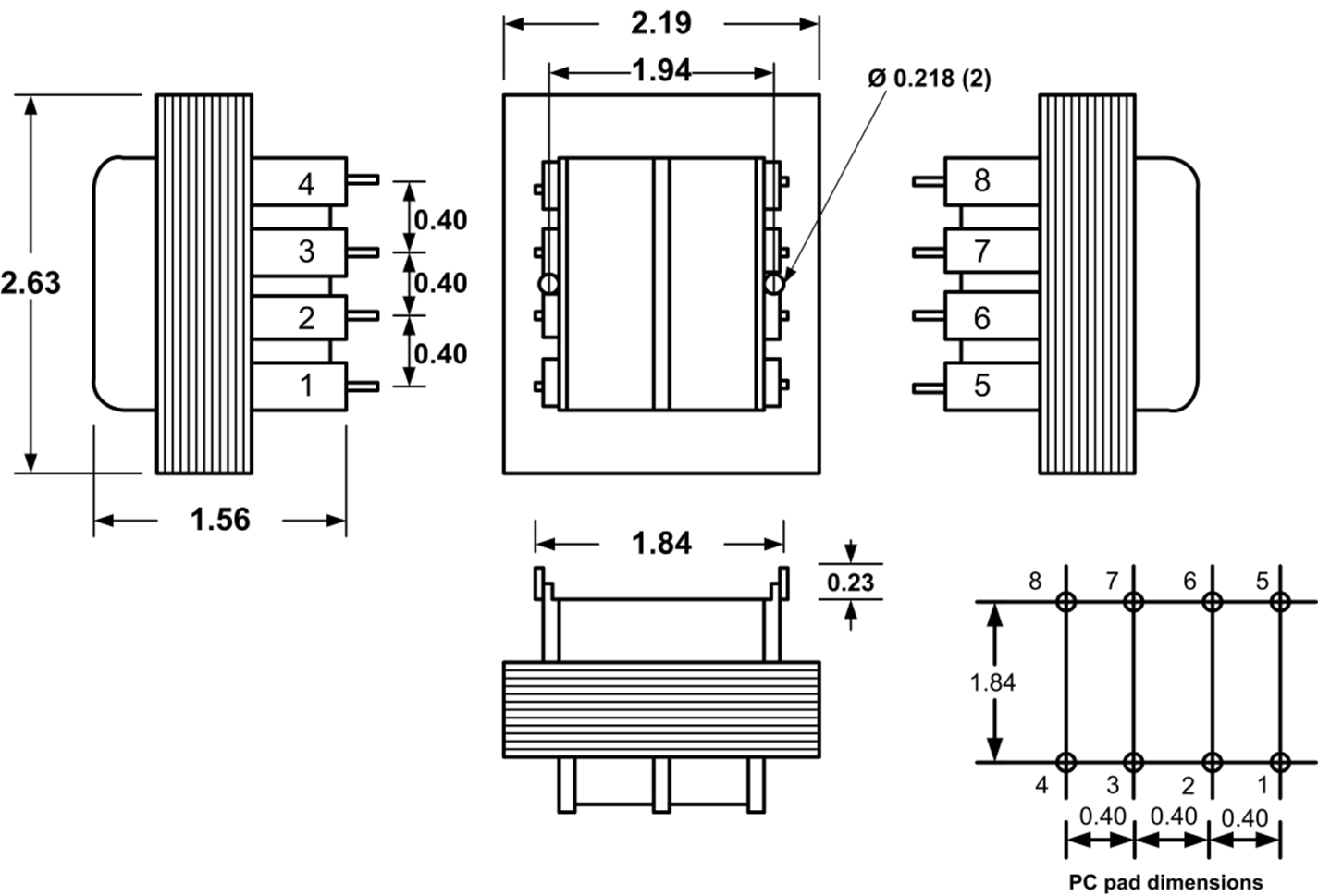

Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | A | B | C | D | E | Pins | Weight (lbs) |
| 36VA | P036-1-024 | 2.63 | 2.19 | 1.56 | 0.218(slot) | 1.94 | 1.84 | 0.40 | 0.40 | 0.041 x 0.020 | 1.10 |
Schematics
