Series: Admiral Class (IL), Panel Mount
Part Number: IL030-1-024
Description: International Series Chassis Mount - Lead Wires, 30VA, Primary: 115V, Secondary Series: 24VCT @ 1.25A, Secondary Parallel: 12V @ 2.5A
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications
| Type | Description |
|---|---|
| VA Rating | 30VA |
| Status | Active |
| Primary Voltage | 115V |
| Secondary Series | 24VCT @ 1.25A |
| Secondary Parallel | 12V @ 2.50A |
| Size/Dimension(L x W x H) | 2.62 x 2.19 x 1.57 Inch |
| Weight (lbs) | 1.28 |
| UL Recognized | UL File E47299 |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHs | RoHs3 COMPLIANT |
| REACH Status | REACH Uneffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.4035 |

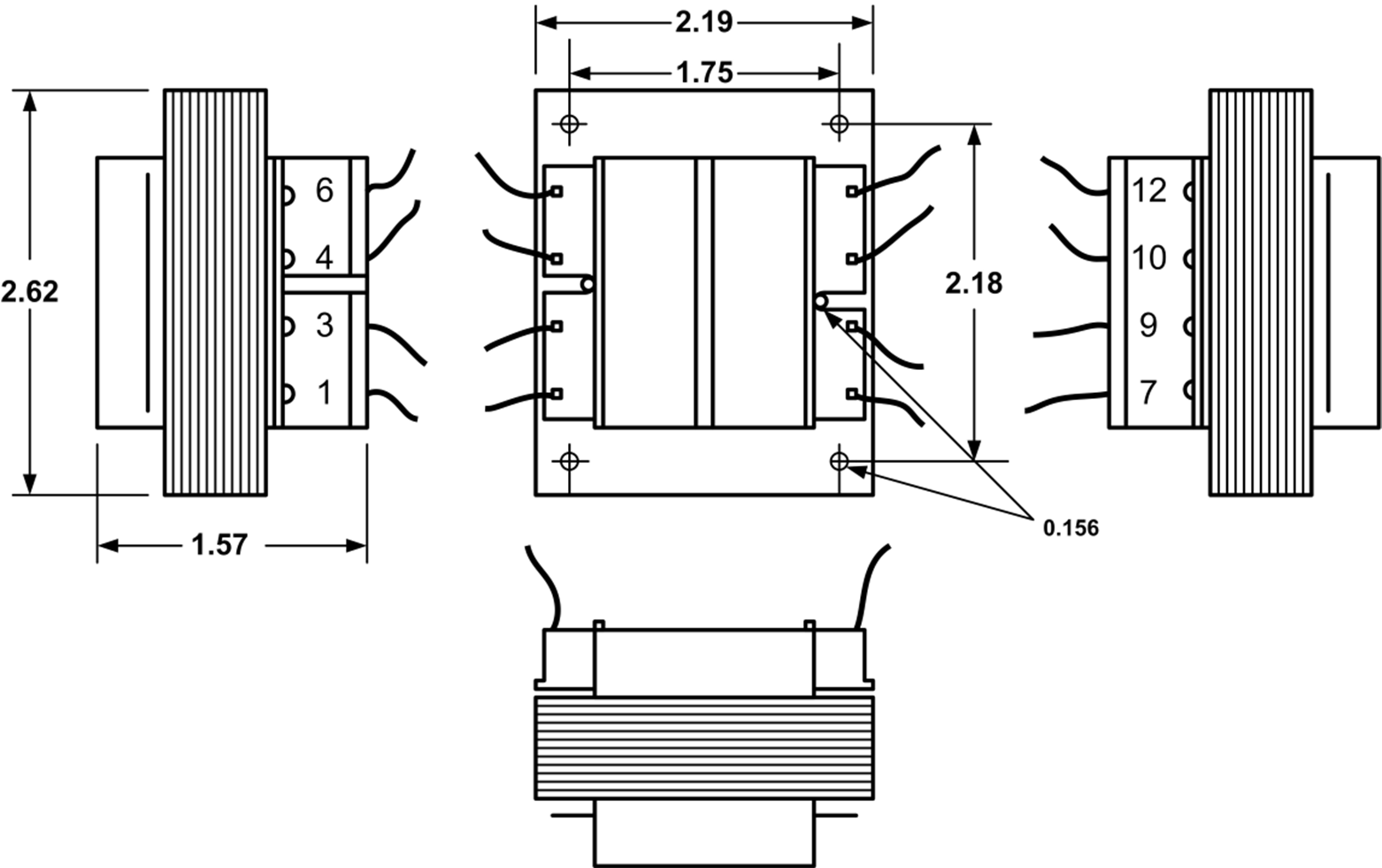

Mechanical Dimensions(inches)
| Dimension's in Inches | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | Mounting Holes | A | B | MC | WC | Weight (lbs) |
| 30VA | IL030-1-024 | 2.62 | 2.19 | 1.57 | 4 | 0.156 | - | 2.18 | 1.75 | 1.28 |
Schematics
