Series GP: Group V, Enclosed
Part Number: GP2000-V60EN
Description: Industrial Control Transformers, 2000VA, Primary: 208V, Frequency: 60Hz, Secondary: 120/240V
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications
| Type | Description |
|---|---|
| VA Rating | 2000VA |
| Part Status | Active |
| Primary Voltage | 208V |
| Frequency | 60Hz |
| Secondary Voltage | 120/240V |
| Mounting Type | Wall Mount |
| Size/Dimension(L x W x H) | 11.00 x 9.30 x 6.70 Inch |
| Weight (lbs) | 45.00 |
| UL Listed | UL File E47299 |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHs | RoHs3 COMPLIANT |
| REACH Status | REACH Uneffected |
| ECCN | EAR99 |
| HTSUS | 8504.32.0000 |
Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | Weight (lbs) | ||||
| 2000VA | GP2000-V60EN | 11.00 | 9.30 | 7.70 | 45.00 | ||||

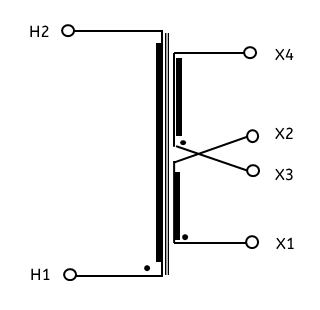

Schematics
