Series GP: Group E, Standard
Part Number: GP2000-E00
Description: Industrial Control Transformers, 2000VA, Primary: 208, 230, 460V, Secondary: 115V
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications
| Type | Description |
|---|---|
| VA Rating | 2000VA |
| Part Status | Active |
| Primary Voltage | 208, 230, 460V |
| Secondary Voltage | 115V |
| Mounting Type | Panel Mount |
| Termination Style | Finger Safe |
| Size/Dimension(L x W x H) | 7.06 x 5.75 x 7.20 Inch |
| Weight (lbs) | 46.90 |
| UL Listed | UL File E47299 |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHs | RoHs3 COMPLIANT |
| REACH Status | REACH Uneffected |
| ECCN | EAR99 |
| HTSUS | 8504.32.0000 |
Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | ML | MW | PW | Mtg. Slot (4 PLCS) | Weight (lbs) |
| 2000VA | GP2000-E00 | 7.06 | 5.75 | 7.20 | 5.81 | 5.25 | 6.62 | 1.000 x 0.312 | 46.90 |

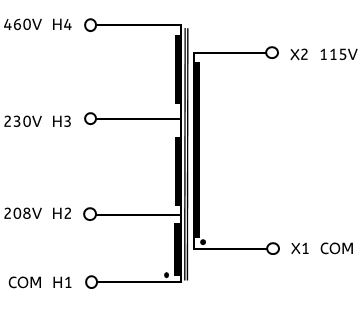

Schematics
