Series GP: Group C, Standard
Part Number: GP2000-C00
Description: Industrial Control Transformers, 2000VA, Primary: 480V, Secondary: 240V
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
View 3D ModelSpecifications:
| Type- | Description, |
|---|---|
| VA Rating | 2000VA, |
| Part Status | Active, |
| Primary Voltage | 480V, |
| Secondary Voltage | 240V, |
| Mounting Type | Panel Mount, |
| Termination Style | Finger Safe, |
| Size/Dimension(L x W x H) | 7.06 x 5.75 x 7.20 Inch, |
| Weight (lbs) | 44.50, |
| UL Listed | UL File E47299, |
Environmental & Export Classifications:
| Attribute- | Description, |
|---|---|
| RoHs | RoHs3 COMPLIANT, |
| REACH Status | REACH Uneffected, |
| ECCN | EAR99, |
| HTSUS | 8504.32.0000, |
Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | ML | MW | PW | Mtg. Slot (4 PLCS) | Weight (lbs) |
| 2000VA | GP2000-C00 | 7.06 | 5.75 | 7.20 | 5.81 | 5.25 | 6.62 | 1.000 x 0.312 | 44.50 |

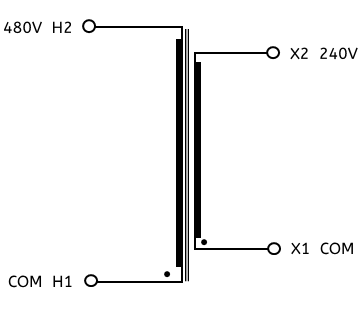

Schematics
