Series GP: Group G, Econoline
Part Number: GP1500-G00.MXX
Description: Industrial Control Transformers, 1500VA, Primary: 380, 415V, Secondary: 110/220V
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications
| Type | Description |
|---|---|
| VA Rating | 1500VA |
| Part Status | Active |
| Primary Voltage | 380, 415V |
| Secondary Voltage | 110/220V |
| Mounting Type | Panel Mount |
| Termination Style | Finger Safe |
| Size/Dimension(L x W x H) | 6.38 x 3.00 x 5.31 Inch |
| Weight (lbs) | 32.00 |
| UL Listed | UL File E47299 |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHs | RoHs3 COMPLIANT |
| REACH Status | REACH Uneffected |
| ECCN | EAR99 |
| HTSUS | 8504.32.0000 |
Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | Weight (lbs) | ||||
| 1500VA | GP1500-G00.MXX | 6.38 | 3.00 | 5.31 | 32.00 | ||||

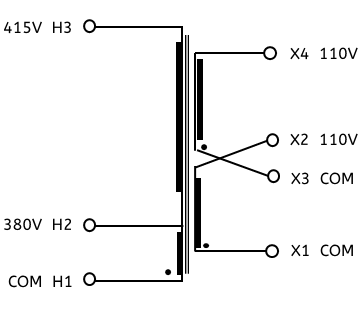

Schematics
