Series GP: Group B, Econoline
Part Number: GP0750-B00.MXX
Description: Industrial Control Transformers, 750VA, Primary: 230, 460, 575V, Secondary: 95, 115V
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications
| Type | Description |
|---|---|
| VA Rating | 750VA |
| Part Status | Active |
| Primary Voltage | 230, 460, 575V |
| Secondary Voltage | 9, 115V |
| Mounting Type | Panel Mount |
| Termination Style | Finger Safe |
| Size/Dimension(L x W x H) | 5.25 x 3.00 x 4.38 Inch |
| Weight (lbs) | 20.00 |
| UL Listed | UL File E47299 |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHs | RoHs3 COMPLIANT |
| REACH Status | REACH Uneffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.4065 |
Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | Weight (lbs) | ||||
| 750VA | GP0750-B00.MXX | 5.25 | 3.00 | 4.38 | 20.00 | ||||

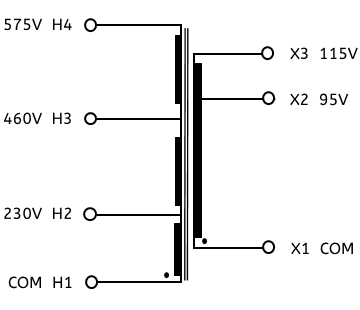

Schematics
