Series GP: Group Z, Standard
Part Number: GP0350-Z00
Description: Industrial Control Transformers, 350VA, Primary: 208/416V, Secondary: 120/240V
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications
| Type | Description |
|---|---|
| VA Rating | 350VA |
| Part Status | Active |
| Primary Voltage | 208/416V |
| Secondary Voltage | 120/240V |
| Mounting Type | Panel Mount |
| Termination Style | Finger Safe |
| Size/Dimension(L x W x H) | 4.50 x 4.75 x 4.44 Inch |
| Weight (lbs) | 12.60 |
| UL Listed | UL File E47299 |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHs | RoHs3 COMPLIANT |
| REACH Status | REACH Uneffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.4065 |
Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | ML | MW | PW | Mtg. Slot (4 PLCS) | Weight (lbs) |
| 350VA | GP0350-Z00 | 4.50 | 4.75 | 4.44 | 3.75 | 3.75 | 4.56 | 0.437 x 0.203 | 12.60 |

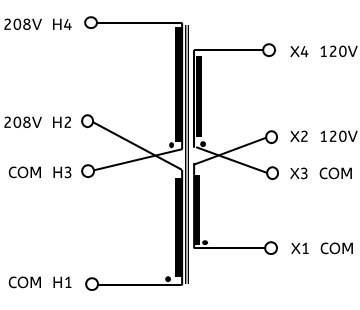

Schematics
