Series GP: Group N, Econoline
Part Number: GP0300-N00.MXX
Description: Industrial Control Transformers, 300VA, Primary: 208, 277, 380V, Secondary: 120/240V
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications
| Type | Description |
|---|---|
| VA Rating | 300VA |
| Part Status | Active |
| Primary Voltage | 208, 277, 380V |
| Secondary Voltage | 120/240V |
| Mounting Type | Panel Mount |
| Termination Style | Finger Safe |
| Size/Dimension(L x W x H) | 4.25 x 2.00 x 3.75 Inch |
| Weight (lbs) | 11.00 |
| UL Listed | UL File E47299 |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHs | RoHs3 COMPLIANT |
| REACH Status | REACH Uneffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.4065 |
Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | Weight (lbs) | ||||
| 300VA | GP0300-N00.MXX | 4.25 | 2.00 | 3.75 | 11.00 | ||||

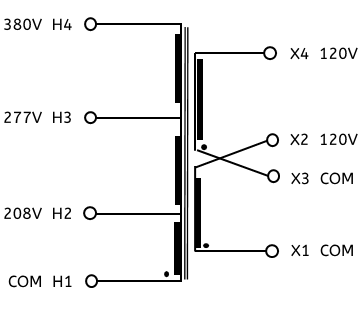

Schematics
