Series GP: Group R, Standard
Part Number: GP0250-R00
Description: Industrial Control Transformers, 250VA, Primary: 208, 230, 460V, Secondary: 24, 115V
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
View 3D ModelSpecifications:
| Type- | Description, |
|---|---|
| VA Rating | 250VA, |
| Part Status | Active, |
| Primary Voltage | 208, 230, 460V, |
| Secondary Voltage | 24, 115V, |
| Mounting Type | Panel Mount, |
| Termination Style | Finger Safe, |
| Size/Dimension(L x W x H) | 4.50 x 4.80 x 4.44 Inch, |
| Weight (lbs) | 12.30, |
| UL Listed | UL File E47299, |
Environmental & Export Classifications:
| Attribute- | Description, |
|---|---|
| RoHs | RoHs3 COMPLIANT, |
| REACH Status | REACH Uneffected, |
| ECCN | EAR99, |
| HTSUS | 8504.31.4065, |
Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | ML | MW | PW | Mtg. Slot (4 PLCS) | Weight (lbs) |
| 250VA | GP0250-R00 | 4.50 | 4.80 | 4.44 | 3.75 | 3.25 | 4.13 | 0.437 x 0.203 | 12.30 |

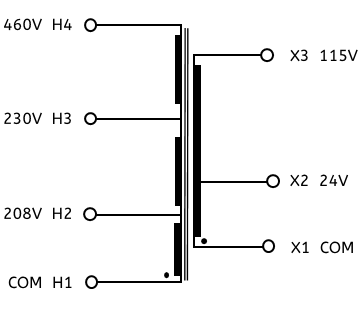

Schematics
