Series GP: Group F, Standard
Part Number: GP0250-F00
Description: Industrial Control Transformers, 250VA, Primary: 550, 575, 600V, Secondary: 110, 115, 120V
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications
| Type | Description |
|---|---|
| VA Rating | 250VA |
| Part Status | Active |
| Primary Voltage | 550, 575, 600V |
| Secondary Voltage | 110, 115, 120V |
| Mounting Type | Panel Mount |
| Termination Style | Finger Safe |
| Size/Dimension(L x W x H) | 4.50 x 3.70 x 4.44 Inch |
| Weight (lbs) | 8.20 |
| UL Listed | UL File E47299 |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHs | RoHs3 COMPLIANT |
| REACH Status | REACH Uneffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.4065 |
Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | ML | MW | PW | Mtg. Slot (4 PLCS) | Weight (lbs) |
| 250VA | GP0250-F00 | 4.50 | 3.70 | 4.44 | 3.75 | 2.88 | 3.70 | 0.437 x 0.203 | 8.20 |

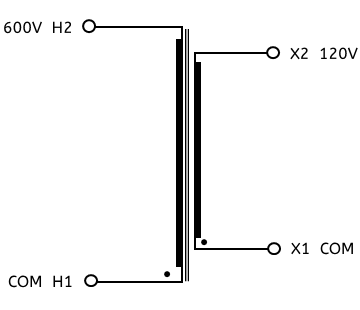

Schematics
