Series GP: Group D, Standard
Part Number: GP0250-D00
Description: Industrial Control Transformers, 250VA, Primary: 600V, Secondary: 240V
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
View 3D ModelSpecifications:
| Type- | Description, |
|---|---|
| VA Rating | 250VA, |
| Part Status | Active, |
| Primary Voltage | 600V, |
| Secondary Voltage | 240V, |
| Mounting Type | Panel Mount, |
| Termination Style | Finger Safe, |
| Size/Dimension(L x W x H) | 4.50 x 3.70 x 4.44 Inch, |
| Weight (lbs) | 8.20, |
| UL Listed | UL File E47299, |
Environmental & Export Classifications:
| Attribute- | Description, |
|---|---|
| RoHs | RoHs3 COMPLIANT, |
| REACH Status | REACH Uneffected, |
| ECCN | EAR99, |
| HTSUS | 8504.31.4065, |
Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | ML | MW | PW | Mtg. Slot (4 PLCS) | Weight (lbs) |
| 250VA | GP0250-D00 | 4.50 | 3.70 | 4.44 | 3.75 | 2.88 | 3.70 | 0.437 x 0.203 | 8.20 |

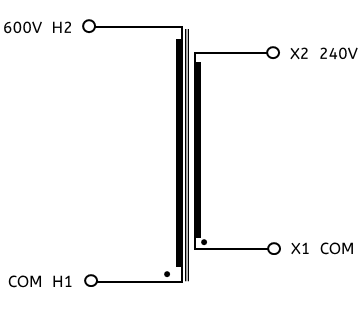

Schematics
