Series GP: Group T, Standard
Part Number: GP0100-T00
Description: Industrial Control Transformers, 100VA, Primary: 120/240V, Secondary: 12/24V
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications
| Type | Description |
|---|---|
| VA Rating | 100VA |
| Part Status | Active |
| Primary Voltage | 120/240V |
| Secondary Voltage | 12/24V |
| Mounting Type | Panel Mount |
| Termination Style | Finger Safe |
| Size/Dimension(L x W x H) | 3.75 x 3.50 x 3.81 Inch |
| Weight (lbs) | 4.60 |
| UL Listed | UL File E47299 |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHs | RoHs3 COMPLIANT |
| REACH Status | REACH Uneffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.4065 |
Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | ML | MW | PW | Mtg. Slot (4 PLCS) | Weight (lbs) |
| 100VA | GP0100-T00 | 3.75 | 3.50 | 3.81 | 2.81 | 2.38 | 3.20 | 0.437 x 0.203 | 4.60 |

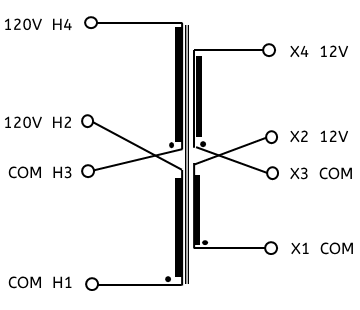

Schematics
