Series: FZ, Econoline
Part Number: FZ30-800
Description: Printed Circuit Mount - Low Profile, 24VA, Primary: 115/230V, Secondary Series: 30VCT @ 800mA, Secondary Parallel: 15V @ 1.60A
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
View 3D ModelSpecifications:
| Type- | Description, |
|---|---|
| VA Rating | 24VA, |
| Status | Active, |
| Primary Voltage | 115/230V, |
| Secondary Series Voltage | 30VCT @ 800mA, |
| Secondary Parallel Voltage | 15V @ 1.60A, |
| Size/Dimension(L x W x H) | 2.87 x 2.23 x 1.25 Inch, |
| Weight (lbs) | 0.94, |
| UL Recognized | UL File E47299, |
Environmental & Export Classifications:
| Attribute- | Description, |
|---|---|
| RoHs | RoHs3 COMPLIANT, |
| REACH Status | REACH Uneffected, |
| ECCN | EAR99, |
| HTSUS | 8504.31.4035, |

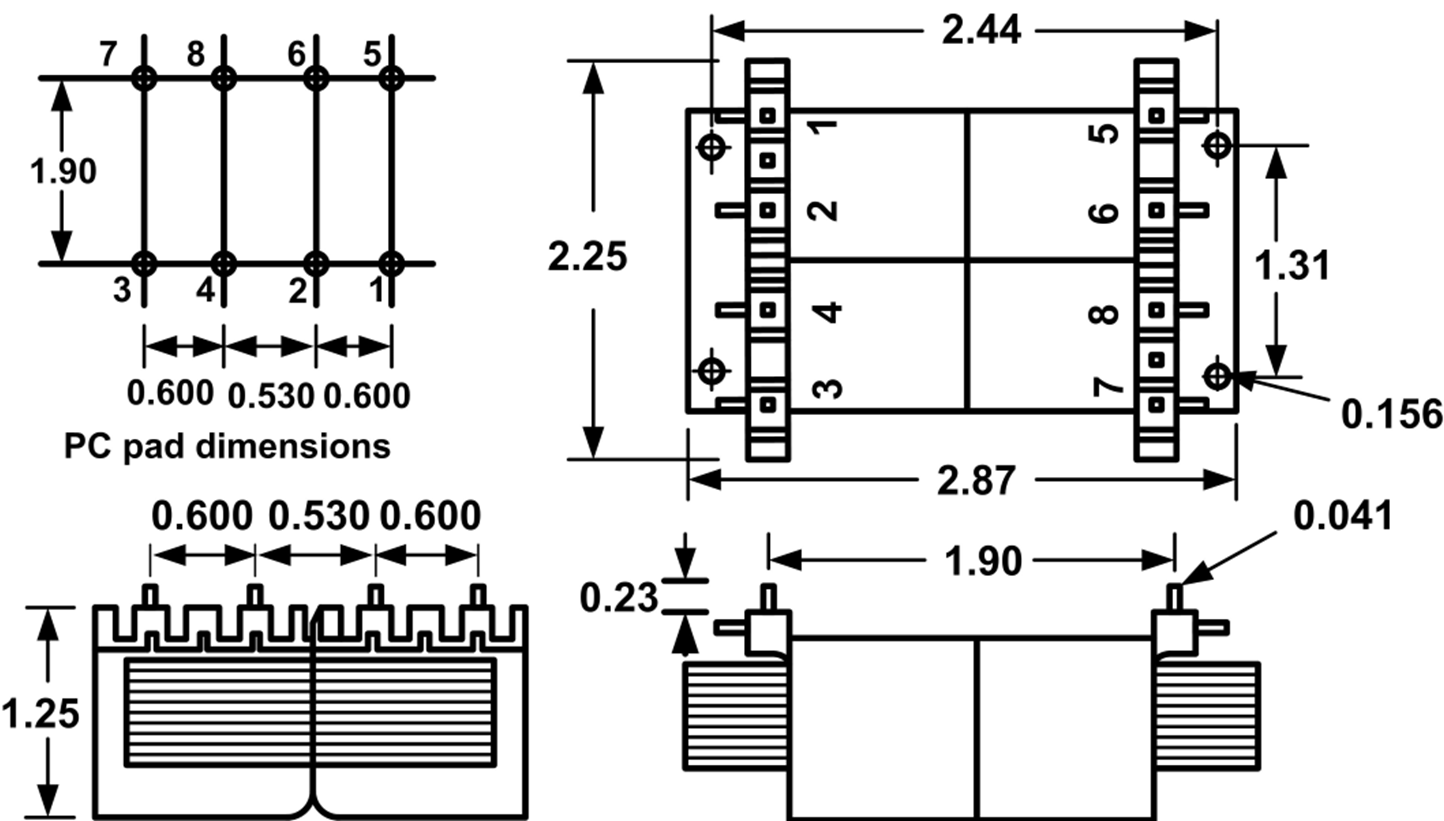

Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | A | B | C | D | Weight (lbs) |
| 24VA | FZ30-800 | 2.87 | 2.23 | 1.25 | 1.90 | 0.60 | 0.53 | 0.041 (sq. pin) | 0.94 |
Schematics
