Series: FZ, Econoline
Part Number: FZ20-2400
Description: Printed Circuit Mount - Low Profile, 48VA, Primary: 115/230V, Secondary Series: 20VCT @ 2.40A, Secondary Parallel: 10V @ 4.80A
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
View 3D ModelSpecifications:
| Type- | Description, |
|---|---|
| VA Rating | 48VA, |
| Status | Active, |
| Primary Voltage | 115/230V, |
| Secondary Series Voltage | 20VCT @ 2.40A, |
| Secondary Parallel Voltage | 10V @ 4.80A, |
| Size/Dimension(L x W x H) | 3.12 x 2.50 x 1.37 Inch, |
| Weight (lbs) | 1.31, |
| UL Recognized | UL File E47299, |
Environmental & Export Classifications:
| Attribute- | Description, |
|---|---|
| RoHs | RoHs3 COMPLIANT, |
| REACH Status | REACH Uneffected, |
| ECCN | EAR99, |
| HTSUS | 8504.31.4065, |

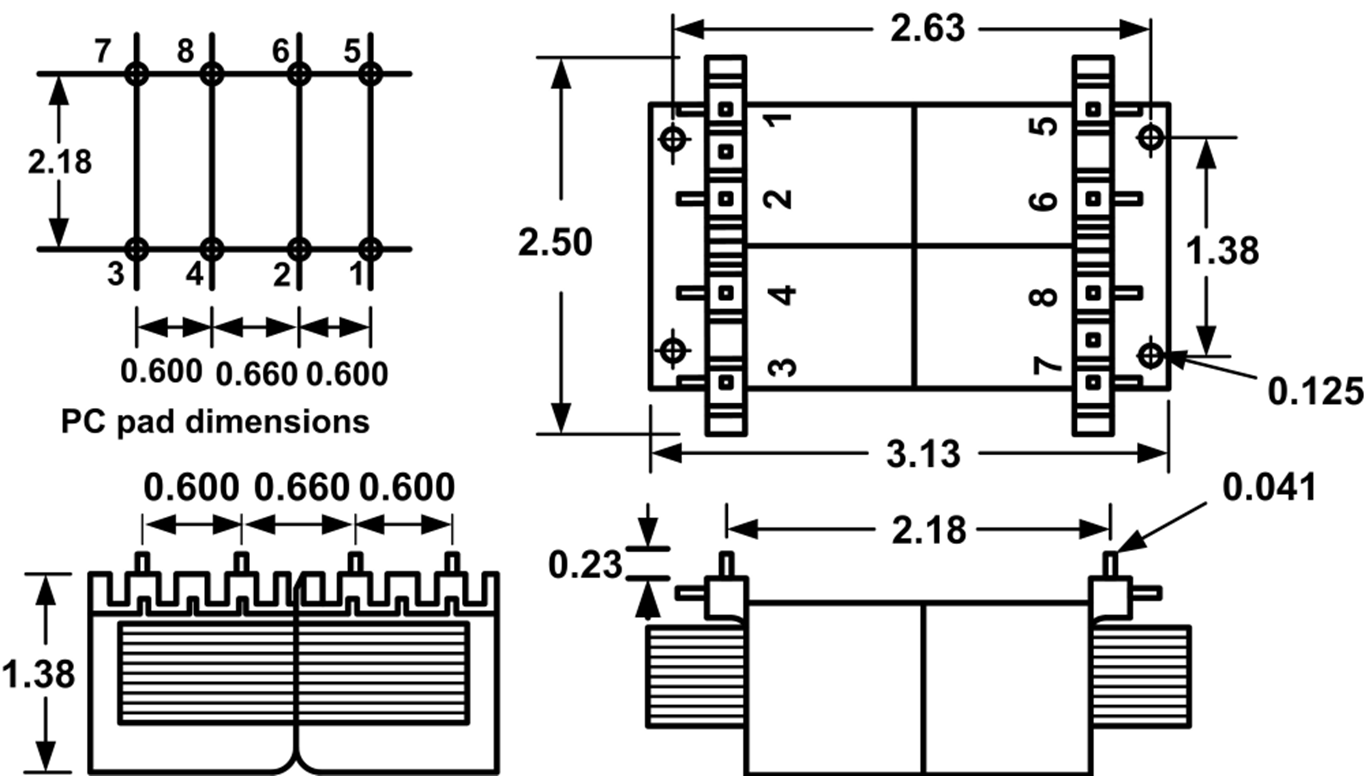

Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | A | B | C | D | Weight (lbs) |
| 48VA | FZ20-2400 | 3.12 | 2.50 | 1.37 | 2.18 | 0.60 | 0.66 | 0.041 (sq. pin) | 1.31 |
Schematics
