Series: CL - Lead Wires & Quick Connect
Part Number: CL50AW15-X-VXF
Description: Class 2 - Non-Inherently Energy Limited, 50 VA, Primary: 208/240V, Secondary: 24V
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications
| Type | Description |
|---|---|
| VA Rating | 50VA |
| Status | Active |
| Primary Voltage | 208/240V |
| Secondary Voltage | 24V |
| Size/Dimension(L x W x H) | 2.180 x 2.470 x 2.685 Inch |
| Weight (lbs) | 1.95 lb |
| UL Recognized | UL File E49606 |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHs | RoHs3 COMPLIANT |
| REACH Status | REACH Uneffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.4065 |
Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | H | W | MC | ML | D | Weight (lbs) | |
| 50VA | CL50AW15-X-VXF | 2.180 | 2.685 | 2.470 | 2.810 | 3.250 | 0.188 | 0.968 | |

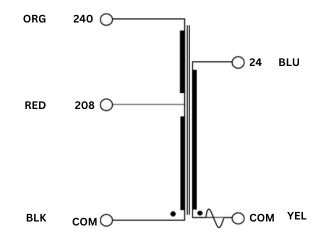

Schematics
