Series: CL - Lead Wires & Quick Connect
Part Number: CL10A02-X-AE2N
Description: Class 2 - Inherently Energy Limited, 10VA, Primary: 277V, Secondary: 24V
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications
| Type | Description |
|---|---|
| VA Rating | 10VA |
| Status | Active |
| Primary Voltage | 277V |
| Secondary Voltage | 24 |
| Size/Dimension(L x W x H) | 3.25 x 1.66 x 1.88 Inch |
| Weight (lbs) | 0.74 lb |
| UL Recognized | UL File E49606 |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHs | RoHs3 COMPLIANT |
| REACH Status | REACH Uneffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.4035 |

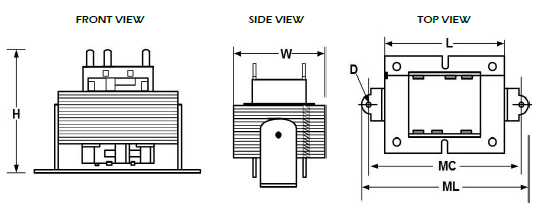

Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | MC | ML | D | Weight (lbs) | |
| 10VA | CL10A02-X-AE2N | 2.25 | 1.88 | 1.71 | 2.81 | 3.25 | 0.188 | 0.74 | |

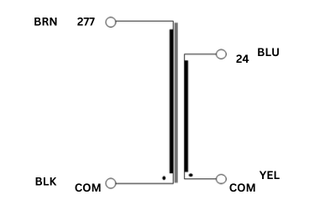

Schematics
