Series: CL - Lead Wires & Quick Connect
Part Number: CL06ES37-X-HXN
Description: Class 2 - Inherently Energy Limited, 6VA, Primary: 115V, Secondary: 10V
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications
| Type | Description |
|---|---|
| VA Rating | 6VA |
| Status | Active |
| Primary Voltage | 115V |
| Secondary Voltage | 10 |
| Size/Dimension(L x W x H) | 2.56 x 1.13 x 1.39 Inch |
| Weight (lbs) | 0.35 lb |
| UL Recognized | UL File E49606 |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHs | RoHs3 COMPLIANT |
| REACH Status | REACH Uneffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.4035 |
Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | MC | ML | D | Weight (lbs) | |
| 6VA | CL06ES37-X-HXN | 1.63 | 1.13 | 1.385 | 2.00 | 2.56 | 0.203 x 0.375 | 0.35 | |

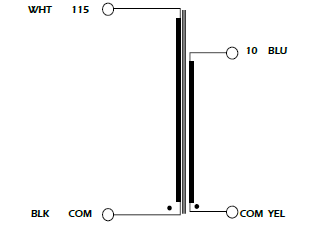

Schematics
