Series: BVZ
Part Number: BVZ-24TC15
Description: DC Power Supply - Three Phase Open Frame, 360VA, Primary : 430/460/480/500/530VAC, Output : 24V @ 15A
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications
| Type | Description |
|---|---|
| VA Rating | 360VA |
| Status | Active |
| Primary Voltage | 430/460/480/500/530VAC |
| Output | 24V @ 15A |
| Size/Dimension(L x W x H) | 9.00 x 6.00 x 8.37 Inch |
| Weight (lbs) | 18 |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHs | RoHs3 COMPLIANT |
| REACH Status | REACH Uneffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.4065 |

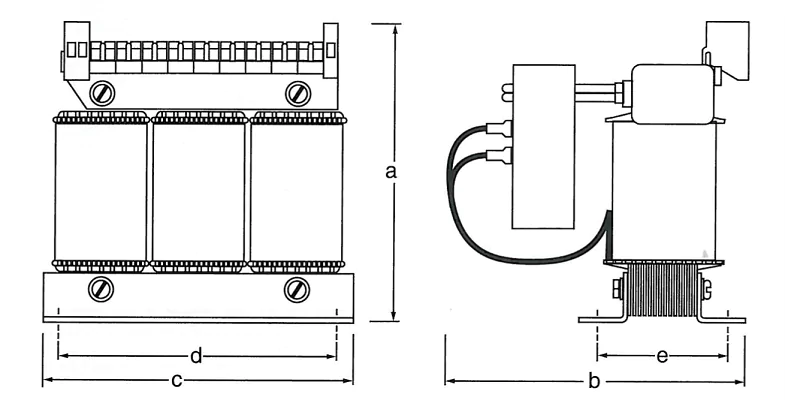

Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | Case Size | A | B | C | D | E | Weight (lbs) | |
| 360VA | BVZ-24TC15 | TC | 8.37 | 6.00 | 9.00 | 6.75 | 2.75 | 18.0 | |

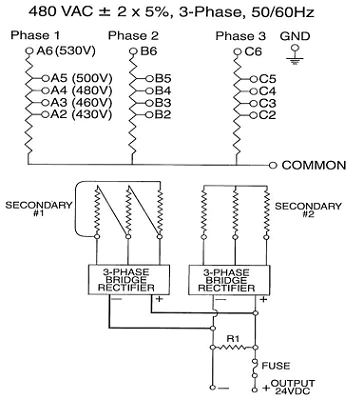

Schematics
