Series: BVU
Part Number: BVU-12CU4.8
Description: DC Power Supply - Unregulated (Open Frame), 58VA,DC Output : 12V @ 4.8A
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications
| Type | Description |
|---|---|
| VA Rating | 58VA |
| Status | Active |
| Input | 103/115/126/207/230/253V |
| DC Output | 12V @ 4.8A |
| Size/Dimension(L x W x H) | 6.25 x 3.71 x 3.00 Inch |
| Weight (lbs) | 4.0 |
| UL Recognized | File # E181899 |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHs | RoHs3 COMPLIANT |
| REACH Status | REACH Uneffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.4065 |

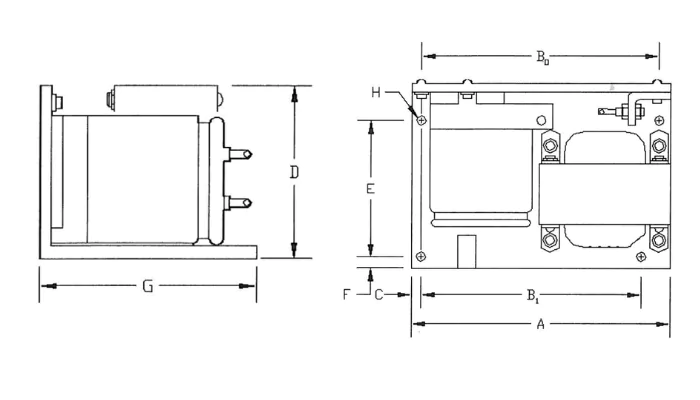

Mechanical Dimensions(inches)
| Dimension's in Inches | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | Case Size | A | B0 | B1 | C | D | E | F | G | H (dia) | Weight (lbs) |
| 58VA | BVU-12CU4.8 | CU | 6.25 | 5.65 | 5.15 | .25 | 3.00 | 2.73 | .35 | 3.71 | .22 | 4.0 |

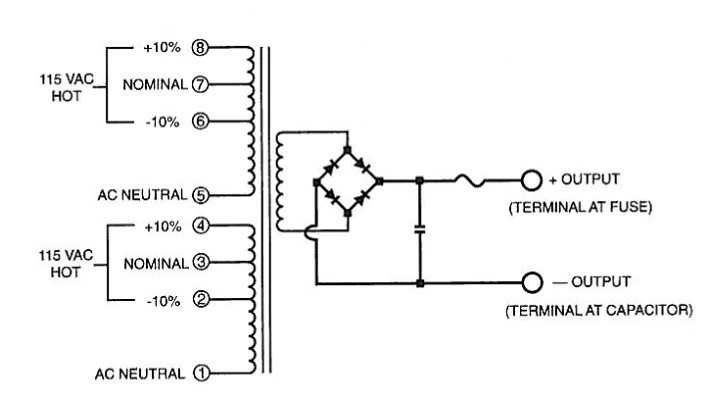

Schematics
