Series: BVA
Part Number: BVA-18FS15
Description: DC Power Supply - Single Output Linear Regulated, Voltage: 18 Volts, 270VA, Input : 110/117/220/230- 240VAC, DC Output : 18V @ 15A
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications:
| Type- | Description, |
|---|---|
| VA Rating | 270VA, |
| Status | Active, |
| Input | 110/117/220/230-240VAC, |
| DC Output | 18V @ 15A, |
| Case | FS, |
| Voltage | 18 Volts, |
| Size/Dimension(L x W x H) | 16.75 x 5.00 x 4.88 Inch, |
| Weight (lbs) | 19.0, |
| UL Recognized | File # E181899, |
Environmental & Export Classifications:
| Attribute- | Description, |
|---|---|
| RoHs | RoHs3 COMPLIANT, |
| REACH Status | REACH Uneffected, |
| ECCN | EAR99, |
| HTSUS | 8504.31.4065, |

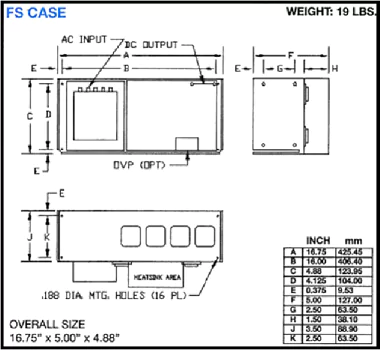

Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | Case Size | A | B | C | D | E | F | G | H | J | K | Weight (lbs) |
| 270VA | BVA-18FS15 | FS | 16.75 | 16.00 | 4.88 | 4.125 | 0.375 | 5.00 | 2.50 | 1.50 | 3.50 | 2.50 | 19.0 |
Schematics
