Series: BVA
Part Number: BVA-12ED5
Description: DC Power Supply - Dual Output Linear Regulated, Voltage: ±12 to 15 Volts, 60VA, Input : 110/117/220/230-240VAC, Output 1 : 12V @ 5A, or 15V @ 5A, Output 2 : -12V @ 5A, or -15V @ 5A
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications:
| Type- | Description, |
|---|---|
| VA Rating | 60VA, |
| Status | Active, |
| Input | 110/117/220/230-240VAC, |
| Output 1 | 12V @ 5A,or 15V @ 5A, |
| Output 2 | -12V @ 5A, or -15V @ 5A, |
| Case | ED, |
| Voltage | ±12 to 15 Volts, |
| Size/Dimension(L x W x H) | 14.00 x 4.87 x 3.40 Inch, |
| Weight (lbs) | 10.0, |
| UL Recognized | File # E181899, |
Environmental & Export Classifications:
| Attribute- | Description, |
|---|---|
| RoHs | RoHs3 COMPLIANT, |
| REACH Status | REACH Uneffected, |
| ECCN | EAR99, |
| HTSUS | 8504.31.4065, |

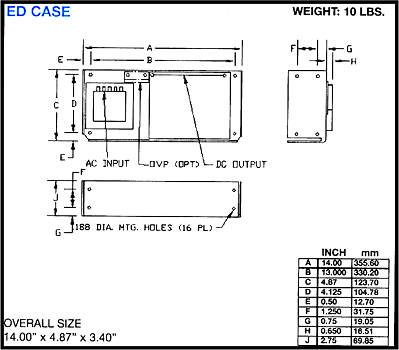

Mechanical Dimensions(inches)
| Dimension's in Inches | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | Case Size | A | B | C | D | E | F | G | H | J | Weight (lbs) |
| 60VA | BVA-12ED5 | ED | 14.00 | 13.000 | 4.87 | 4.125 | 0.50 | 1.250 | 0.75 | 0.650 | 2.75 | 10.0 |
Schematics
